Victron Energy Smartsolar Mppt Bluetooth Charge Controller, 150 Volts, Blue (Like New)

The Cyrix Battery Combiner is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss, so that the output voltage of alternators or battery chargers does not need to be increased. 12/24 Volt auto-ranging.

Specifications:

• Victron Energy Cyrix Battery Combiner is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage

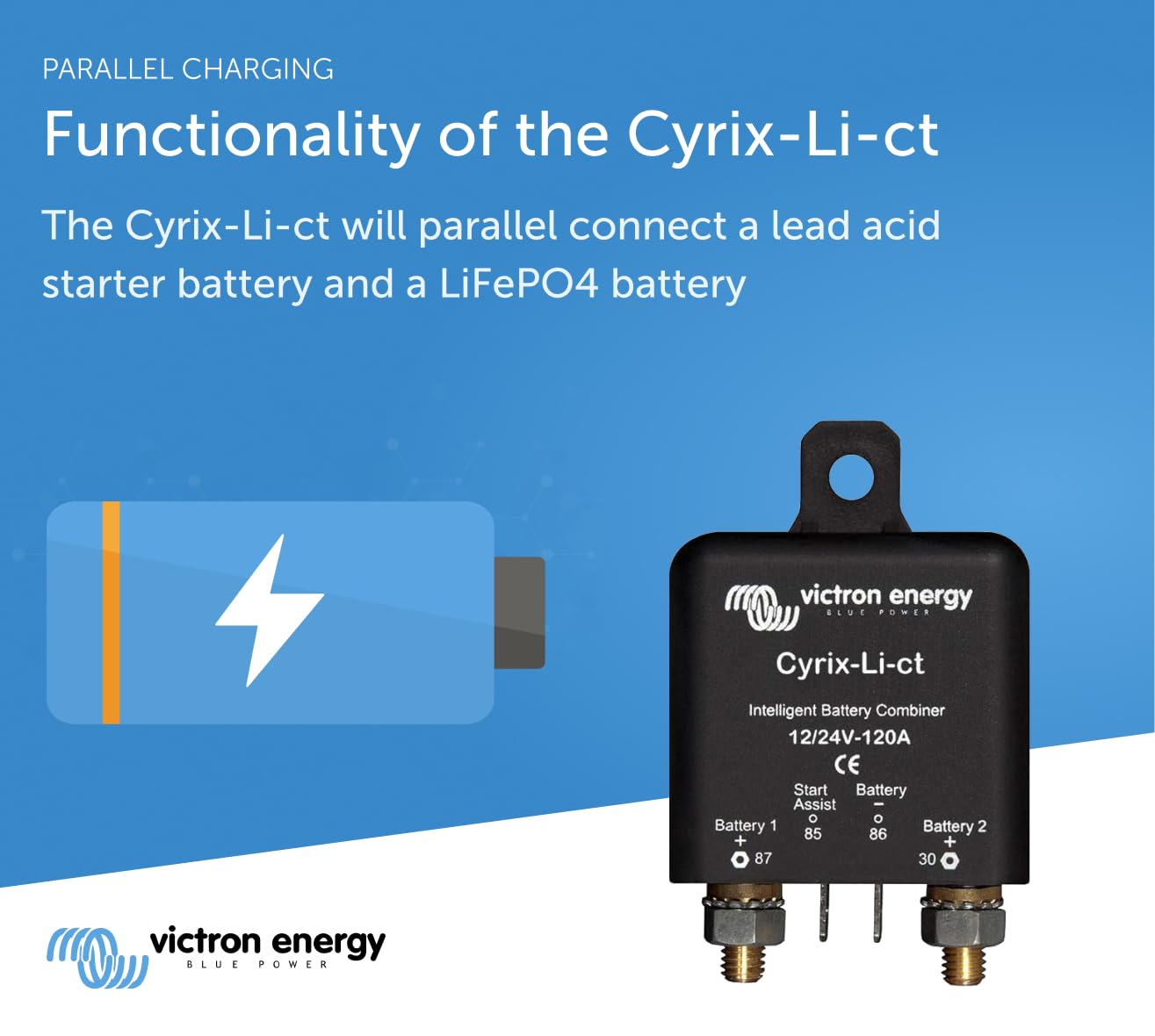

• Victron Energy Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery
• Victron Energ Cyrix will disengage immediately: when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or when battery voltage drops below 13.2V
• Start assist function: a short negative pulse will close the relay for 30 seconds
• A built-in transient voltage suppressor will limit the voltage spike that may occur when the Victron Energ Cyrix suddenly disengages due to cell overvoltage or overtemperature

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Item Model Number: CYR010120412
Mounting Type: Plug-In Mount
Current Rating: 120 Amps
Operation Mode: Battery
Coil Voltage: 24 Volts

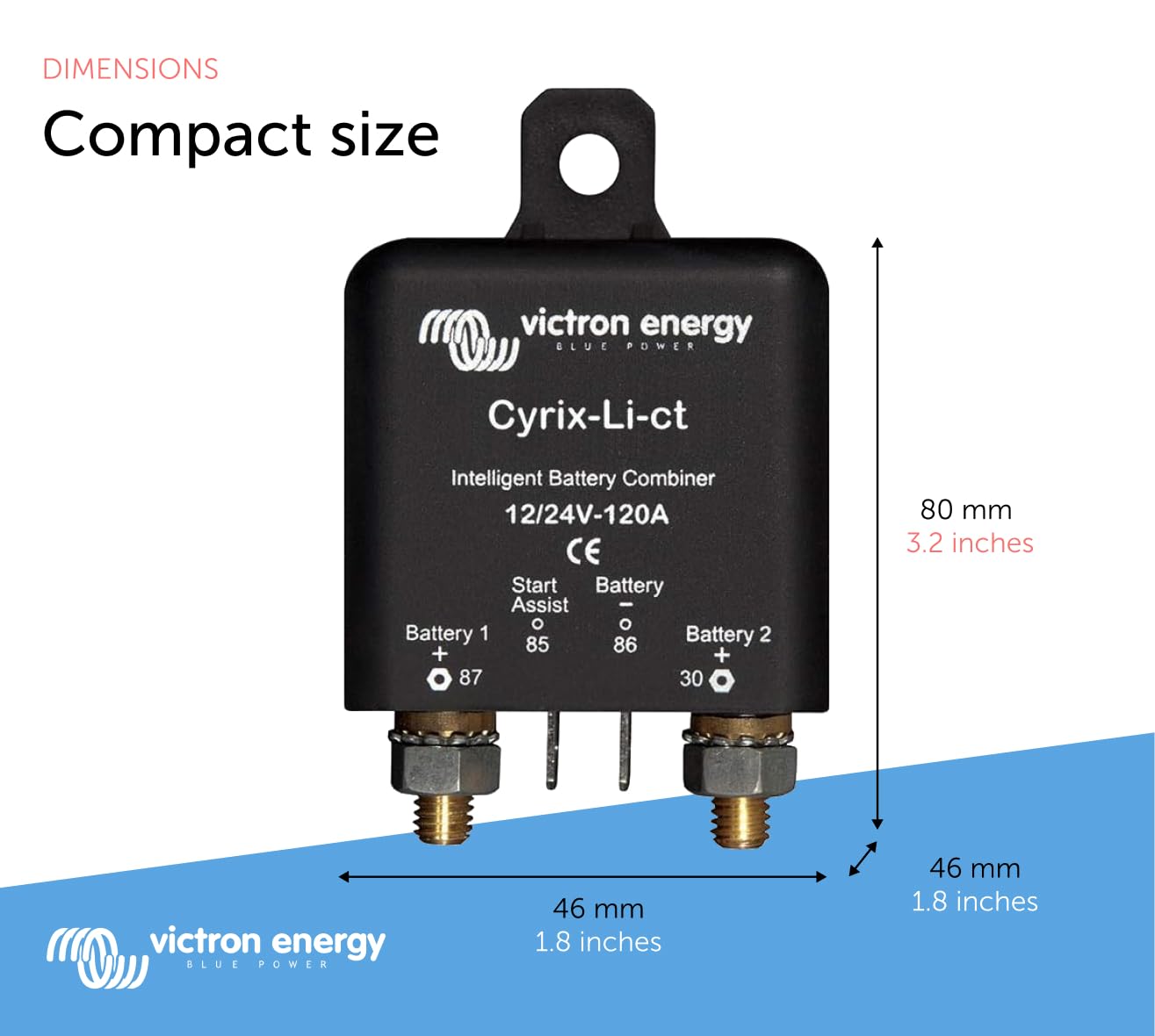

Product Dimensions: 2.56 x 1.97 x 2.95 inches
Weight: 3.88 ounces
