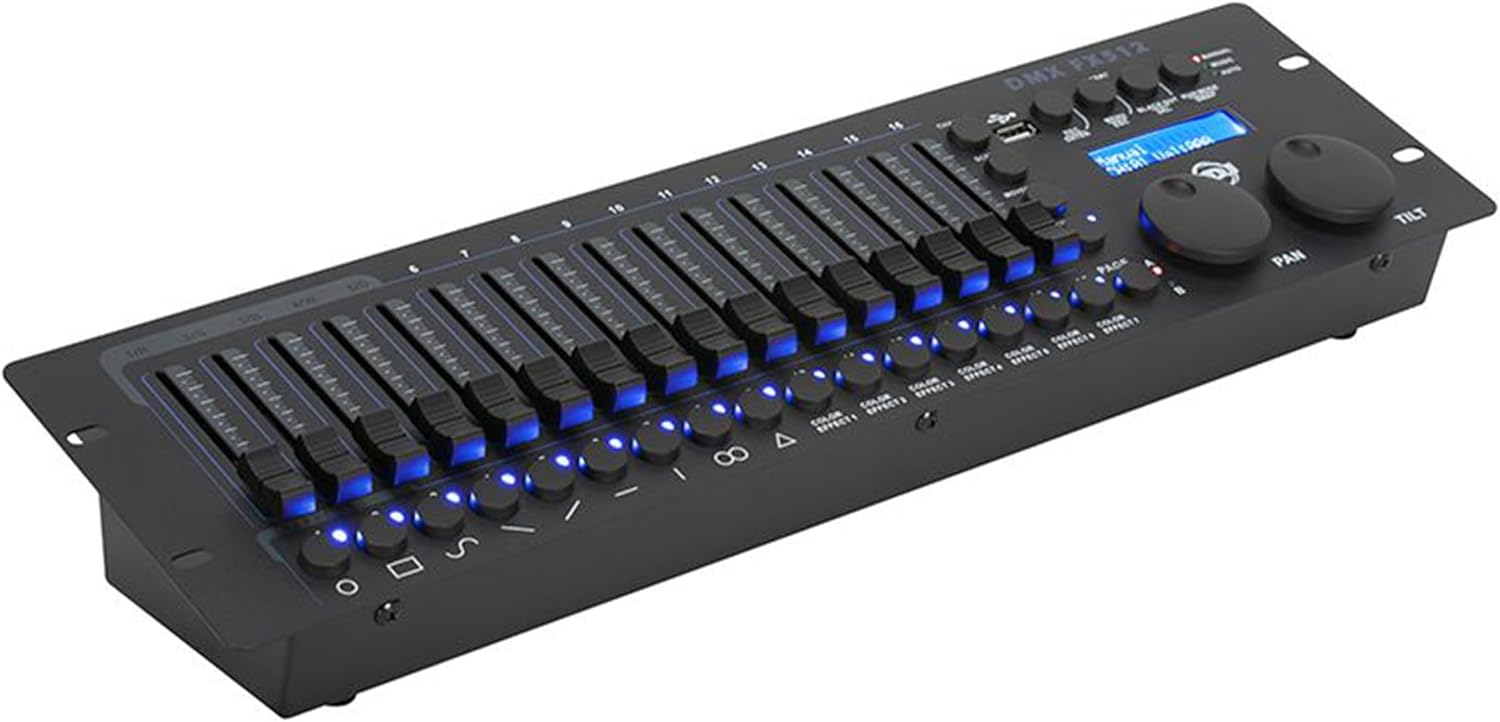

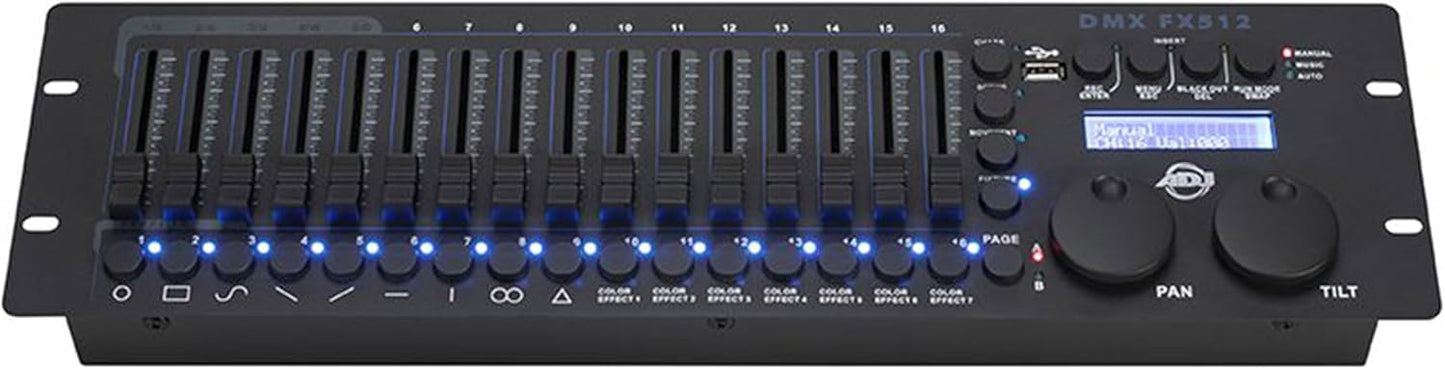

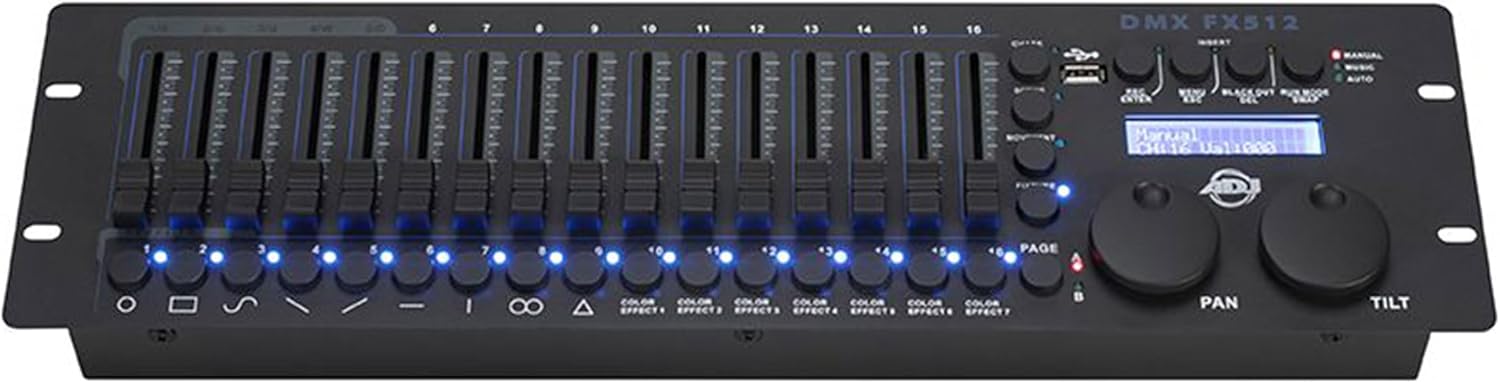

ADJ DMX FX512 Pro 512-Channel Rackmount DMX Controller w/ RDM and USB for Event (Like New)

Enhance your lighting control with the ADJ DMX FX512, a professional 19" rack-mount DMX controller designed for stages, clubs, churches, and event production. This powerful unit supports 512 DMX channels, RDM configuration, and control of up to 32 fixtures with 18 channels each. Create dynamic shows using 32 scenes, 32 chases, and 16 built-in effects for moving lights and RGB LEDs. Features include soft-patchable faders, Pan/Tilt wheels, digital sound sensitivity, USB for data backup, and a durable, lightweight design perfect for portable or fixed installations.

Specifications:

• Features: 19" Rack-mount DMX Controller DMX 512 & RDM protocol. 512 DMX channels. Control up to 32 intelligent fixtures, up to 18 channels each 32 chases, each up to 100 steps, can run 5 chases simultaneously, 32 programmable scenes, Soft-patchable faders & control wheels, 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures, USB for data backup and firmware update.
• Control: DMX512 and RDM to set the DMX addresses and DMX channel mode of the fixtures from the controller, 16-channel control faders. Dedicated Pan/Tilt wheels (User Assignable) 16 Effects / Fixture select buttons Sound sensitivity digitally adjustable (0%-100%), built-in Mic. With the Wired Digital Communication Network

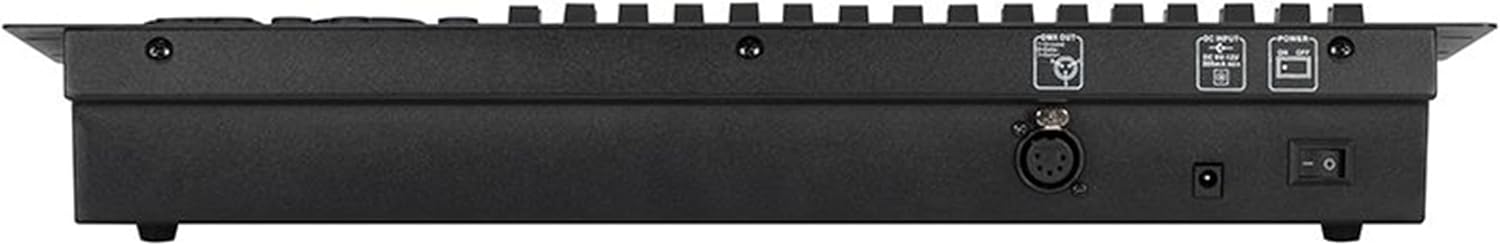

• Connections: 5pin XLR DMX Output Power Supply Input USB A Port Operational Conditions: Use in dry location only Min. ambient temperature: 32°F (0°C) Max ambient temperature: 113°F (45°C) Humidity: <75% Allow 6" minimum between this controller and surrounding devices or wall Storage Conditions: Store in a dry location Ambient storage temperature: 77°F (25°C)
• Power: Power Supply: DC9V`12V 300mA min. (DC9V 1A PSU Included) Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W Dimensions & Weight: Length: 5.28" (134mm.) Width: 19" (482mm.) Height: 2.71" (68.9 mm) Weight: 4.7lbs.(2.13kg.) Certifications & Rating: CE cETLus (Pending) IP20

Technical Details:
Brand: ADJ
Manufacturer: ADJ
Model Name: DMX FX512
Model Number: DMX FX512
UPC: 810087372491
Included Components: Power Supply
Product Style: DMX OPERATOR FX512
Connectivity Technology: USB
Instrument Key: Any
Compatible Devices: PC
Connector Type: XLR, USB
Hardware Interface: USB
Control Type: DJ Controller
Platform: Not Machine Specific
Human Interface Input: Buttons, Dial, Microphone
Hardware Platform: PC/Mac
Control Method: Touch
Noise Control: Sound Isolation
Size: 5.28" X 19" X 2.71" (134Mm X 482Mm X 68.9Mm)
Item Weight: 5.7 Pounds
