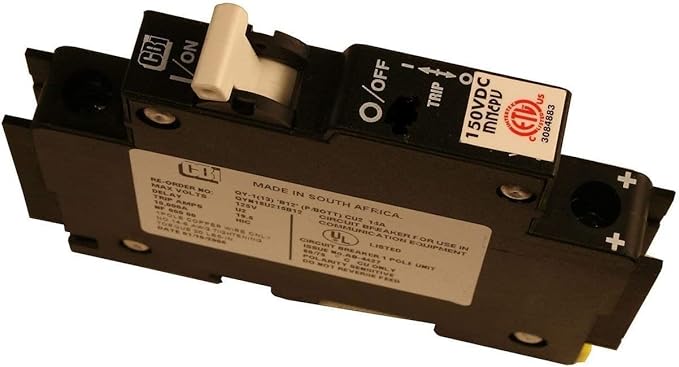

MidNite Solar MNEPV2 DIN Rail Mount Circuit Breaker, 150 Volts (DC) - Black (Like New, No Retail Box)
MidNite Solar MNEPV2 DIN Rail Mount Circuit Breaker, 150 Volts (DC) - Black (Like New, No Retail Box)
Couldn't load pickup availability
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. MNEPV breakers are the same as CBI QY breakers, except that the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for the US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and, in many cases, are not suitable for the solar industry.
Specifications:
- Branch circuit rated 489A
- 150VDC din rail mount breaker (13mm wide)
- 150VDC ETL listed in the US and Canada

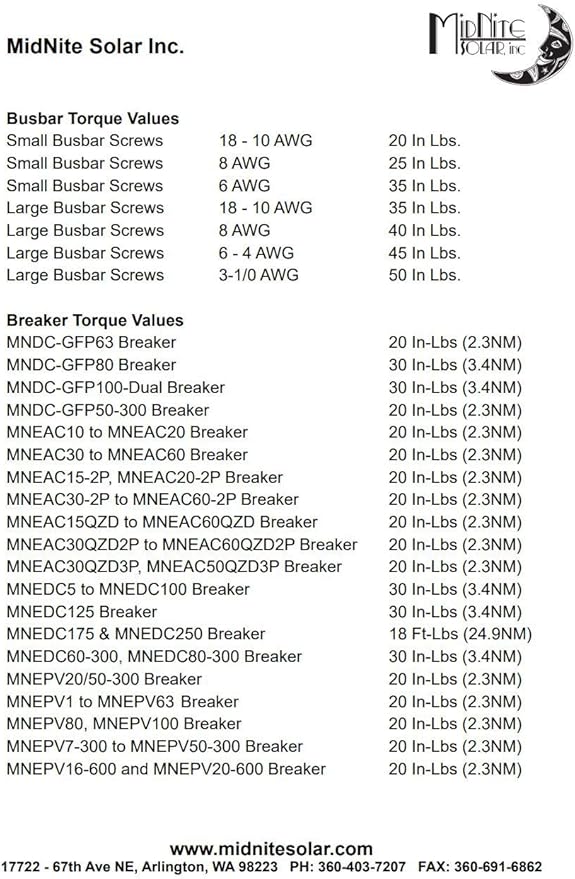

- Breaker Torque Value: 20 In-Lbs (2.3NM)
- 10,000 AIC | Polarised
Technical Details:
Brand: MidNite Solar
Manufacturer: MidNite Solar
Model: MNEPV2
UPC: 682131508787
Current Rating: 489 Amps
Voltage: 150 Volts
Circuit Breaker Type: Standard
Mounting Type: DIN Rail Mount
Number of Poles: 1
