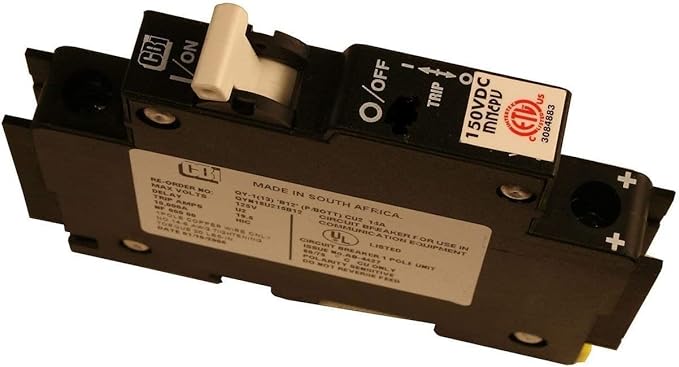

MidNite Solar MNEPV20 20A DC Circuit Breaker, 150 Volts for Solar PV Systems (Like New)

MidNite Solar MNEPV20 20A DC Circuit Breaker, 150 Volts for Solar PV Systems (Like New)

$28.06 USD
$23.25 USD $28.06 USD
Deal Sold out
Shipping calculated at checkout.

MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. MNEPV breakers are the same as CBI QY breakers, except that the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for the US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and, in many cases, are not suitable for the solar industry. All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

Specifications:

  • Branch circuit rated 489A
  • 150VDC din rail mount breaker (13mm wide)
  • 150VDC ETL listed in the US and Canada
  • 10,000 AIC | Polarized

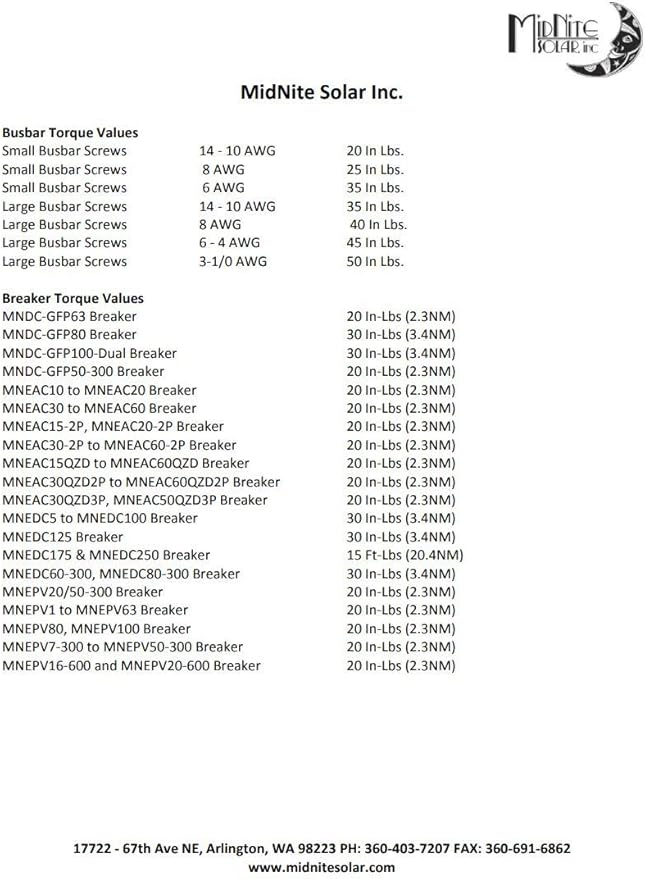

  • Breaker Torque Value: 20 In-Lbs (2.3NM)

Technical Details:
Brand: MidNite Solar
Manufacturer: MidNite Solar
Model: MNEPV20
Included Components: Circuit Breaker
Current Rating: 20 Amps
Voltage: 150 Volts (DC)
Circuit Breaker Type: Standard
Mounting Type: DIN Rail Mount
Number of Poles: 1
Item Height: 0.5 inches
Item Weight: 0.03 Kilograms
