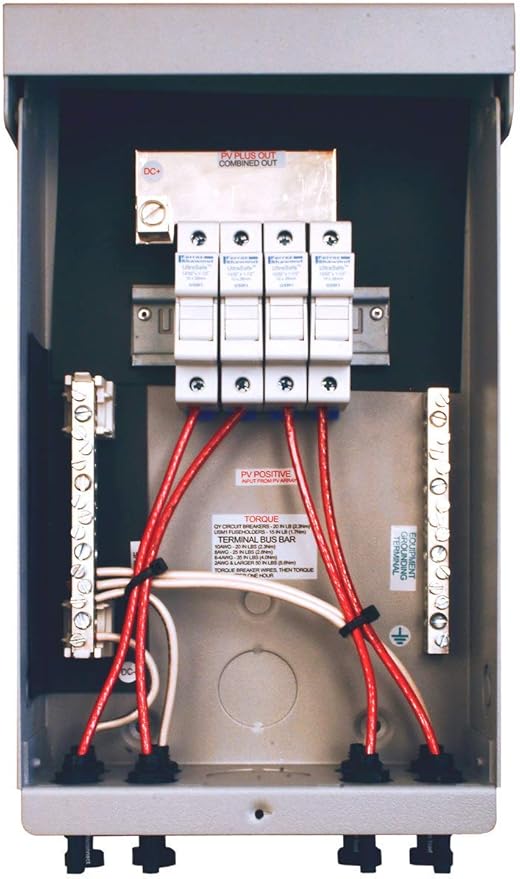

MidNite Solar MNPV4-MC4 Pre-Wired Combiner 4 Position with four 15A Fuse Holders (Like New)

MidNite Solar MNPV4-MC4 Pre-Wired Combiner 4 Position with four 15A Fuse Holders, Breakers, and fuse holders sold separately. The 3R Pre-wired MNPV4 combiner is rated for outdoor use. Designed for combining high voltage strings using 10mm x 38mm fuses up to 80 amps total. The use of touch safe din rail mount fuse holders ( MNTS) and fuses allow operation up to 600 Volts. The MNPV4 is rated for up to 80 amps.

Specifications:

• Type 1 environmental rating
• Fast, Convenient hook up with industry standard connectors
• All aluminum powder-coated housing that won't rust
• Flip-up cover that can stay in the open position during installation
• PV Negative bus bar with #6 and 1/0 connections

Technical Details:
Brand: MidNite Solar
Manufacturer: MidNite Solar
Part Number: Midnite Solar-MNPV4-MC4
Item Weight: 0.01 ounces
Product Dimensions: 16 x 8 x 4 inches
Item model number: MNPV4-MC4
Is Discontinued By Manufacturer: No
Color: Gray
Style: Compact
Material: Aluminum
Amperage Capacity: 15 Amps
Item Package Quantity: 1
Batteries Included?: No
Batteries Required?: No
