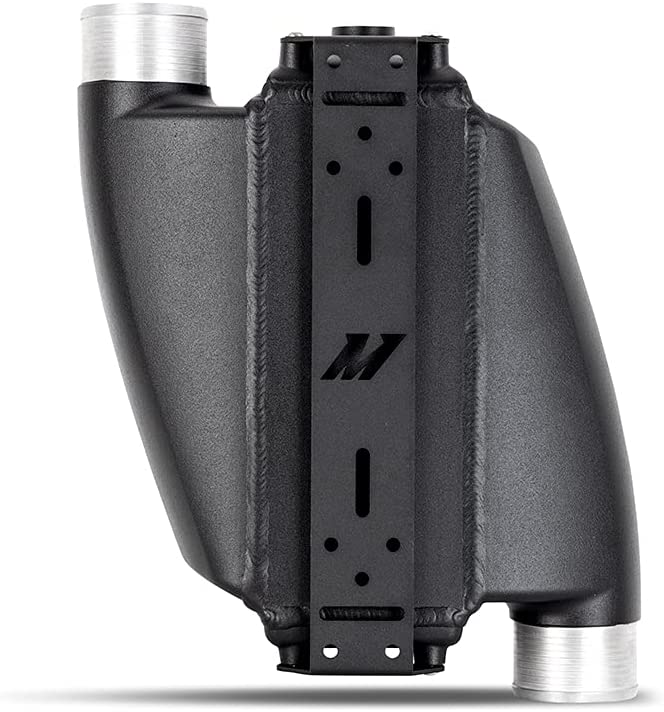

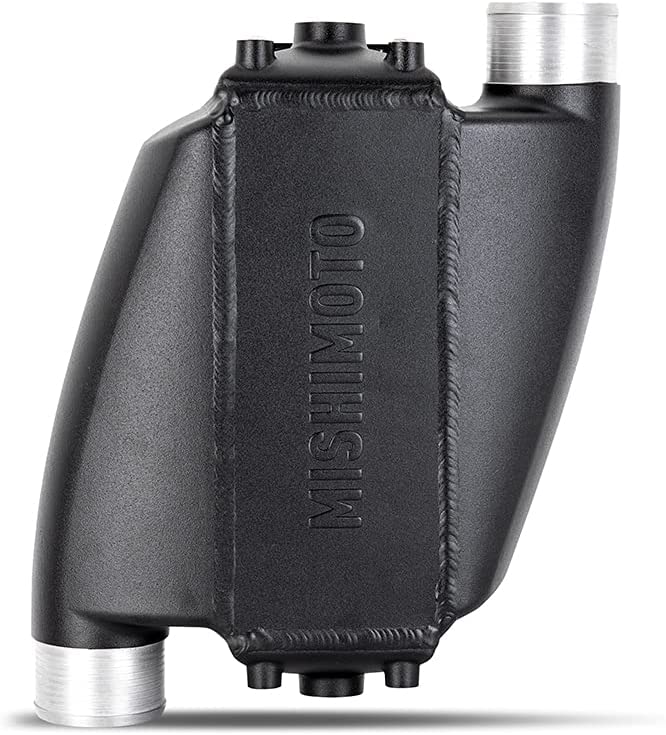

Mishimoto Single-Pass Air-to-Water Intercooler 500HP Opposite Inlet/Outlet (Like New)

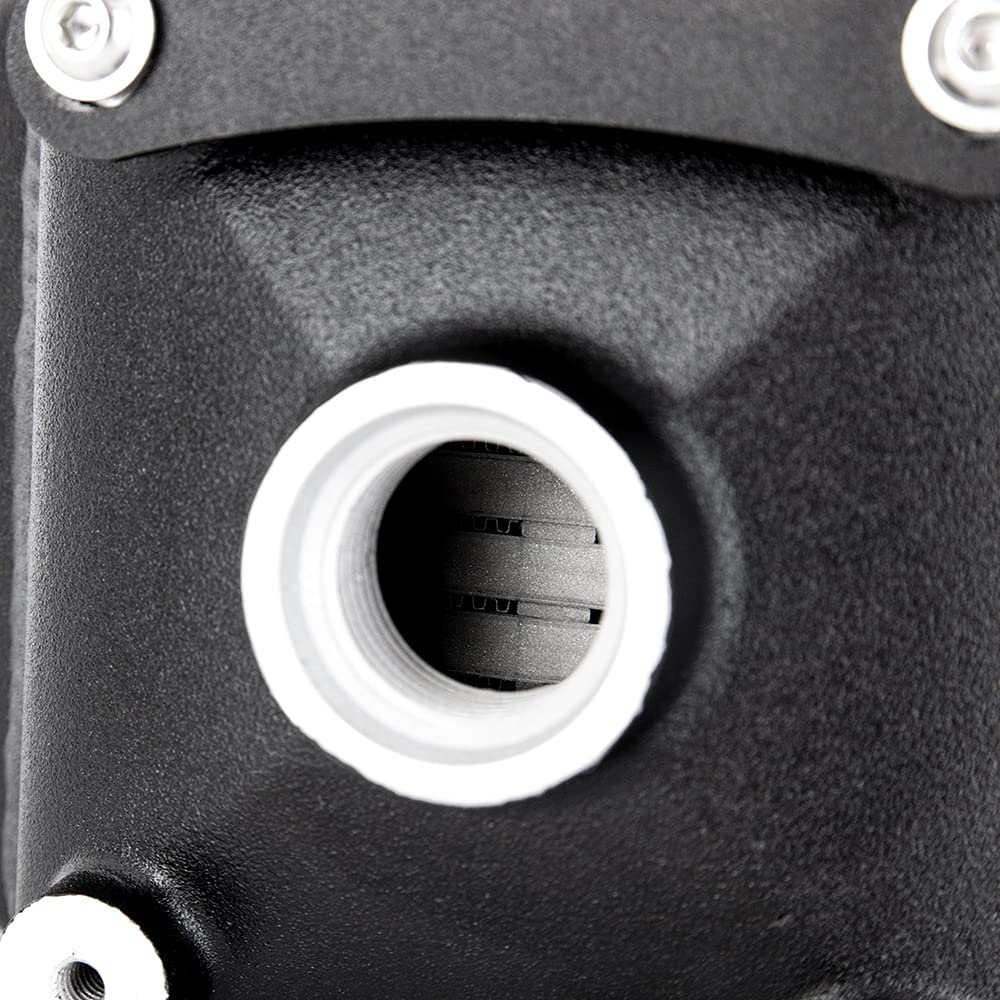

Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers. Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower. When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping. Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -16ORB coolant ports into the core and providing a sturdy 1/8” thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -16ORB Aluminum Fitting selection. Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat.

Specifications:

• Highly efficient air-to-water design delivers effective cooling in a compact package
• Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
• Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
• Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow

Technical Details:
Brand: ‎Mishimoto
Manufacturer: ‎Mishimoto
Model: Mishimoto Universal Air-to-Water Intercooler, Single-Pass Coolant Flow, 500HP - Opposite Side Inlet/Outlet
Item Weight: ‎16.12 pounds
Product Dimensions: ‎21 x 18 x 10 inches
Item model number: MMINT-A2W-SPR-1
Is Discontinued By Manufacturer: ‎No
Exterior: Painted
Manufacturer Part Number: ‎MMINT-A2W-SPR-1
OEM Part Number: AWIC04
Special Features: ‎Core Size: 500HP: 9.79" X 3.93" X 3.93" 1000HP: 12.00" X 4.92" X 4.92" 1500HP: 12.00" X 5.90" X 5.90", Inlet/Outlet: 500HP: 2.75" 1000HP: 3.00" 1500HP: 3.50", Max Rec PSI: 100, Tank Wall Thickness: 5mm, Bar-and-Plate Construction
