PoE Texas 24 Port Passive PoE Injector w/ 48V 120W PS for 802.3af Devices (Used)

PoE Texas 24 Port Passive PoE Injector w/ 48V 120W PS for 802.3af Devices (Used)

$107.87 USD
$136.25 USD $107.87 USD
Deal Sold out
Shipping calculated at checkout.

Replace up to 24 individual injectors with this single 10/100 POE module.

Extend power to 328 ft or 100 meters

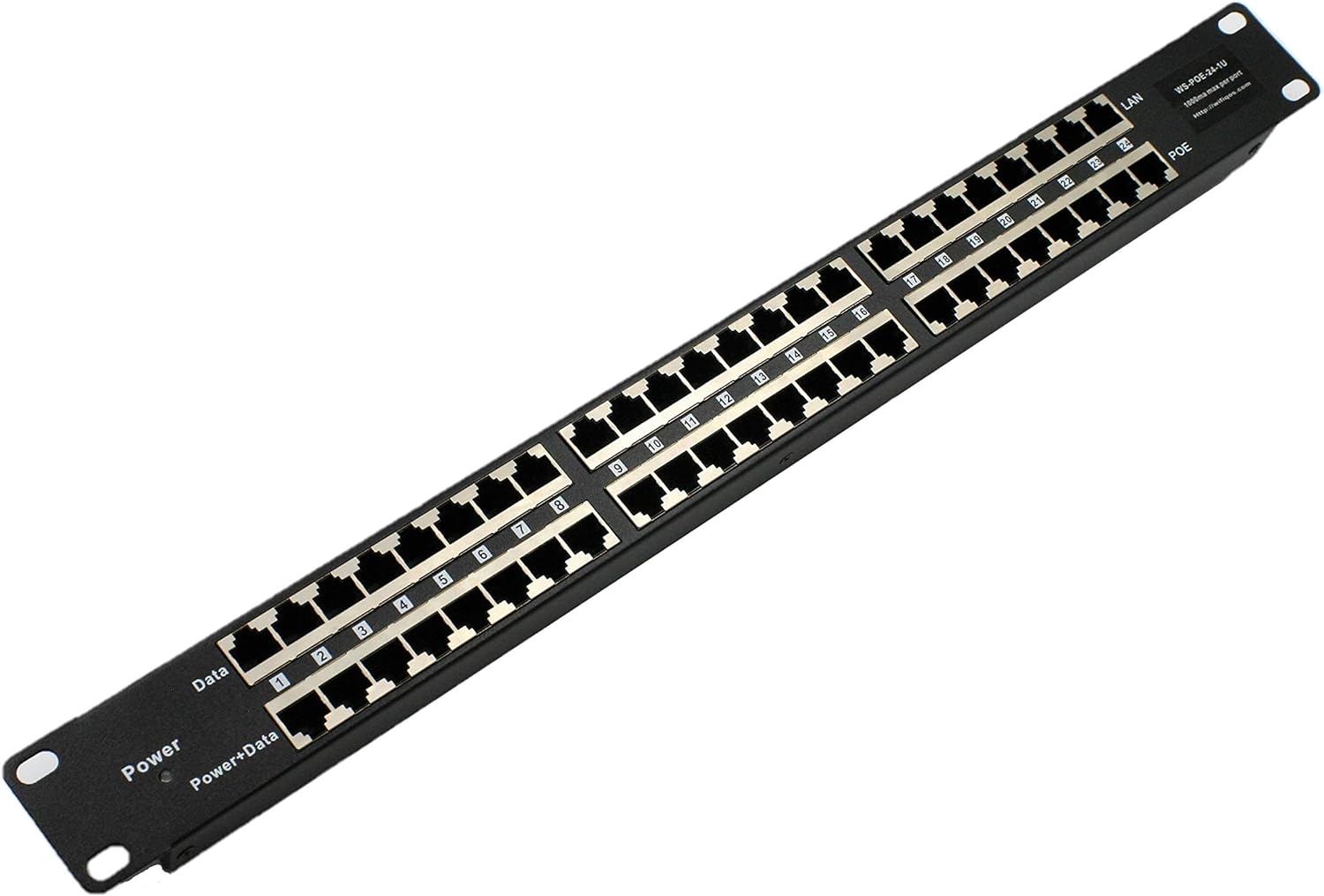

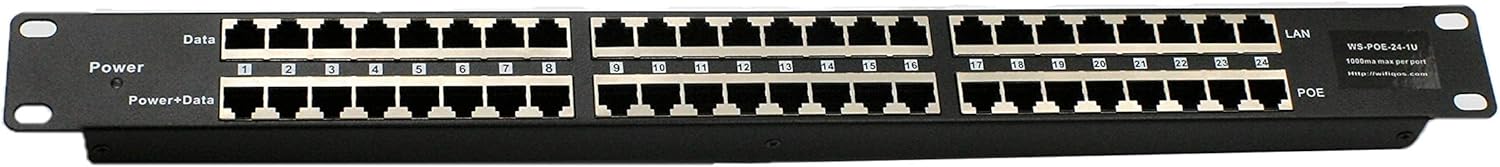

Rack mounted PoE injector
24 shielded RJ45 ports with Data + Power out
Power per port limited to 350 ma, self resetting PTC fuse per port
24 shielded RJ45 LAN Ports for data input from your switch
Dual DC power jacks - primary and secondary DC power
LED power status
10/100 operation
802.3af compatibility with Mode B power pinout (pins +4,5 -7,8)

Specifications:

  • Instantly upgrade your network to PoE using this 24 Port, 1U Rack mount Power over Ethernet midspan injector
  • Use to power 802.3af compliant IP Phones, Cameras, WiFi Access Points and more
  • Passive “Always-on” Power with Mode B operation; 10/100 Fast Ethernet capability

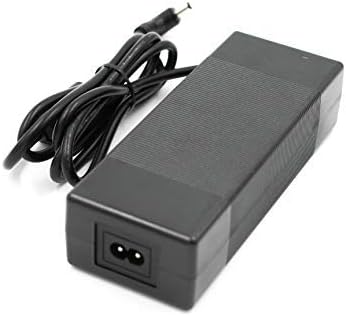

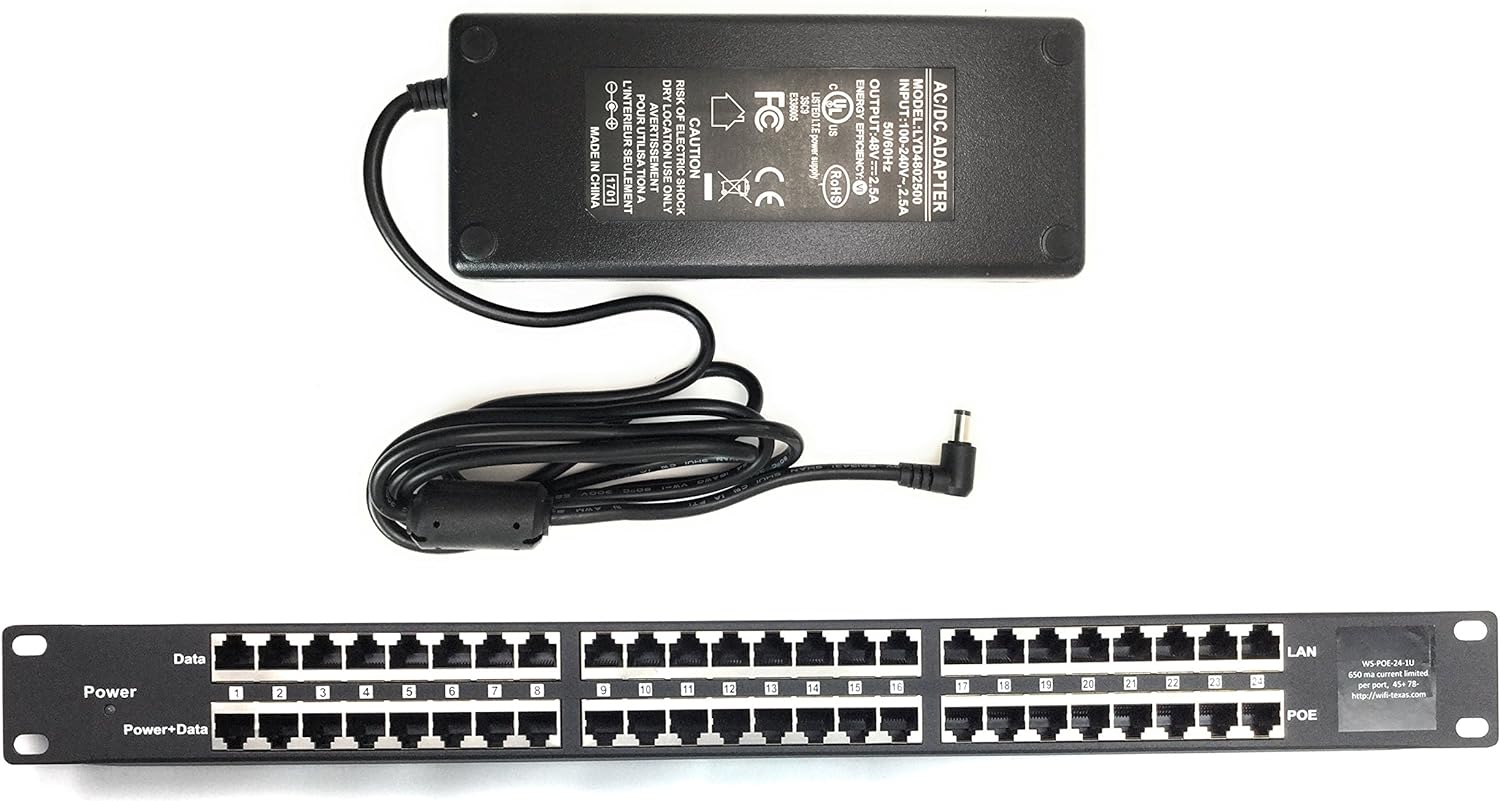

  • Includes a 48 volt, 2.5 amp, 120 watt UL/FCC/CE approved power supply - or use the direct wire terminals with a larger DC power supply to expand your power budget

Technical Details:
Operation Mode: Power
Current Rating: 2.5 Amps
Operating Voltage: 5 Volts
Connector Type: Rj45
Brand: PoE Texas
Terminal: Wire Terminals
Item Dimensions LxWxH: 20 x 3 x 3 inches
Mounting Type: Rack Mount
International Protection Rating: IP65, IP67
Connectivity Protocol: Ethernet
Wattage: 120 watts
Unit Count: 1.0 Count
Product Dimensions: 20 x 3 x 3 inches
Item Weight: 3 pounds
Manufacturer: PoE Texas
Item model number: POE-24-48v120w
Is Discontinued By Manufacturer: No
Date First Available: February 1, 2012
