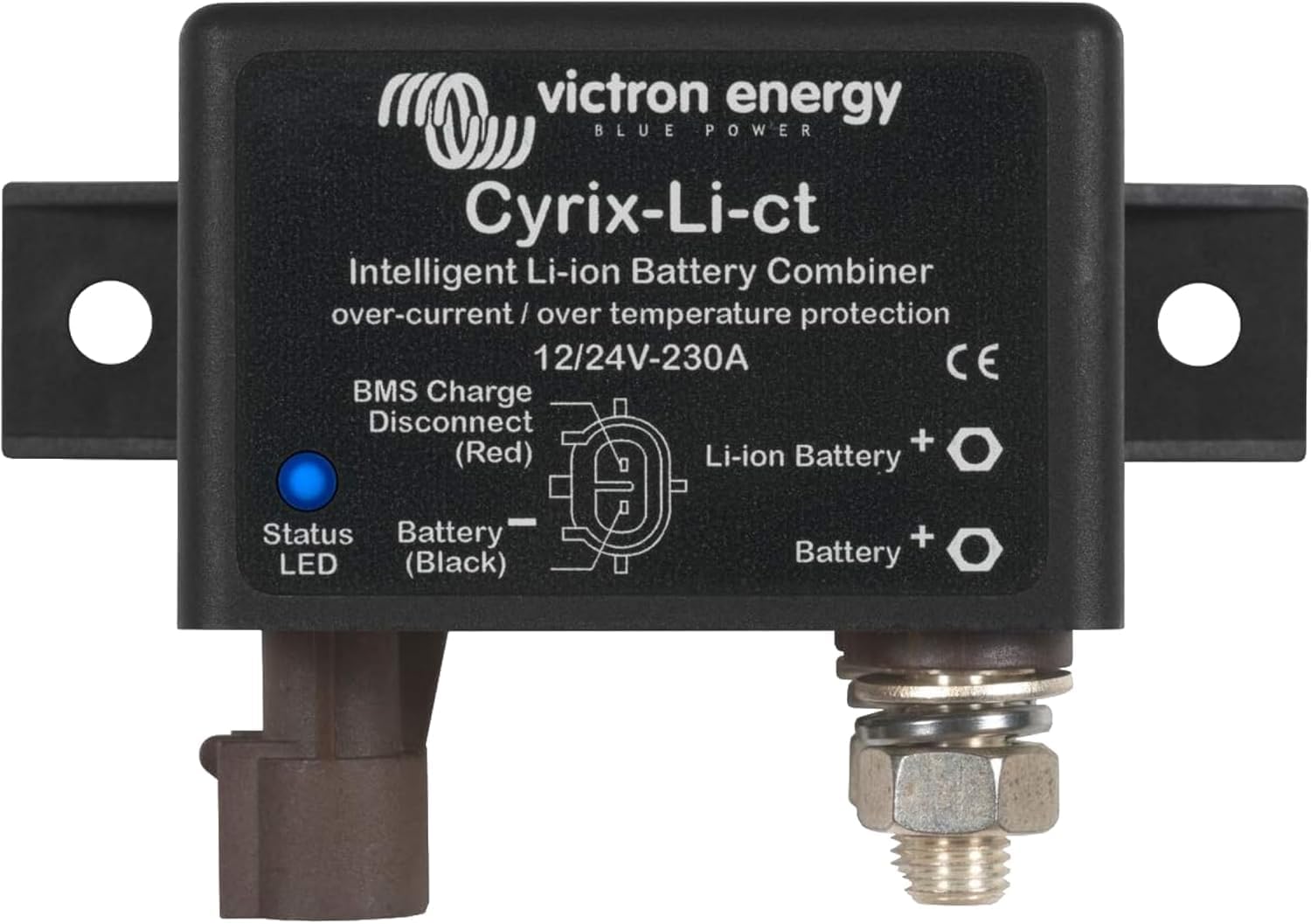

Victron Cyrix-Li-ct 12/24-Volt 230A Battery Combiner Relay Li-ion Smart Isolator (Used)

Victron Cyrix-Li-ct 12/24-Volt 230A Battery Combiner Relay Li-ion Smart Isolator (Used)

$53.99 USD
$155.88 USD $53.99 USD
Deal Sold out
Shipping calculated at checkout.

Optimize your battery system with the Victron Energy Cyrix-Li-ct 12/24V 230A Intelligent Battery Combiner, designed for efficient and reliable power management. This microprocessor-controlled heavy-duty relay automatically connects batteries in parallel when charging voltage is detected and disconnects them when voltage drops, preventing unwanted discharge. Ideal for systems using both lead-acid starter batteries and LiFePO4 lithium batteries, it ensures safe and seamless operation. Unlike traditional diode isolators, the Cyrix combiner delivers virtually zero voltage loss, maintaining maximum charging efficiency without requiring higher alternator output. It features automatic disengagement for added protection during overvoltage, overheating, or low voltage conditions. The built-in transient voltage suppressor safeguards connected components from sudden voltage spikes. With a convenient start assist function, the relay can temporarily engage to support engine starting when needed, making it a dependable solution for marine, RV, and off-grid applications.

Specifications:

  • Victron Energy Cyrix Battery Combiner is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage

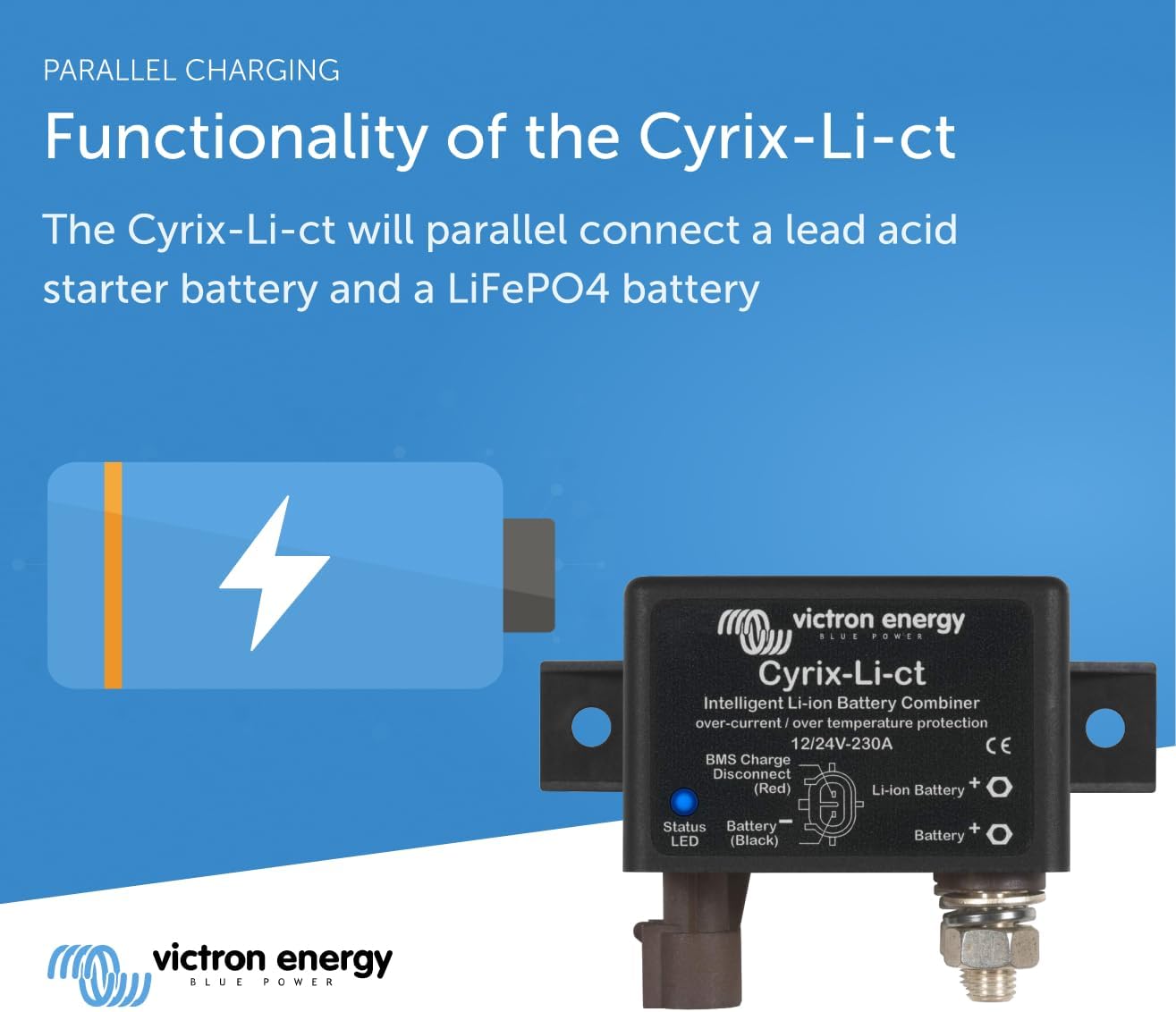

  • Victron Energy Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery
  • Victron Energ Cyrix will disengage immediately: when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or when battery voltage drops below 13.2V
  • Start assist function: a short negative pulse will close the relay for 30 seconds
  • A built-in transient voltage suppressor will limit the voltage spike that may occur when Victron Energ Cyrix suddenly disengages due to cell overvoltage or overtemperature

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Part Number CYR010230412
Connector Type: Through Hole
Contact Type: Normally Open
Current Rating: 230 Amps
Mounting Type: Oberflächenmontage
Operation Mode: Automatic
Coil Voltage: 12 Volts (DC)
Contact Current Rating: 230 Amps
Minimum Switching Voltage: 13.2 Volts (DC)
