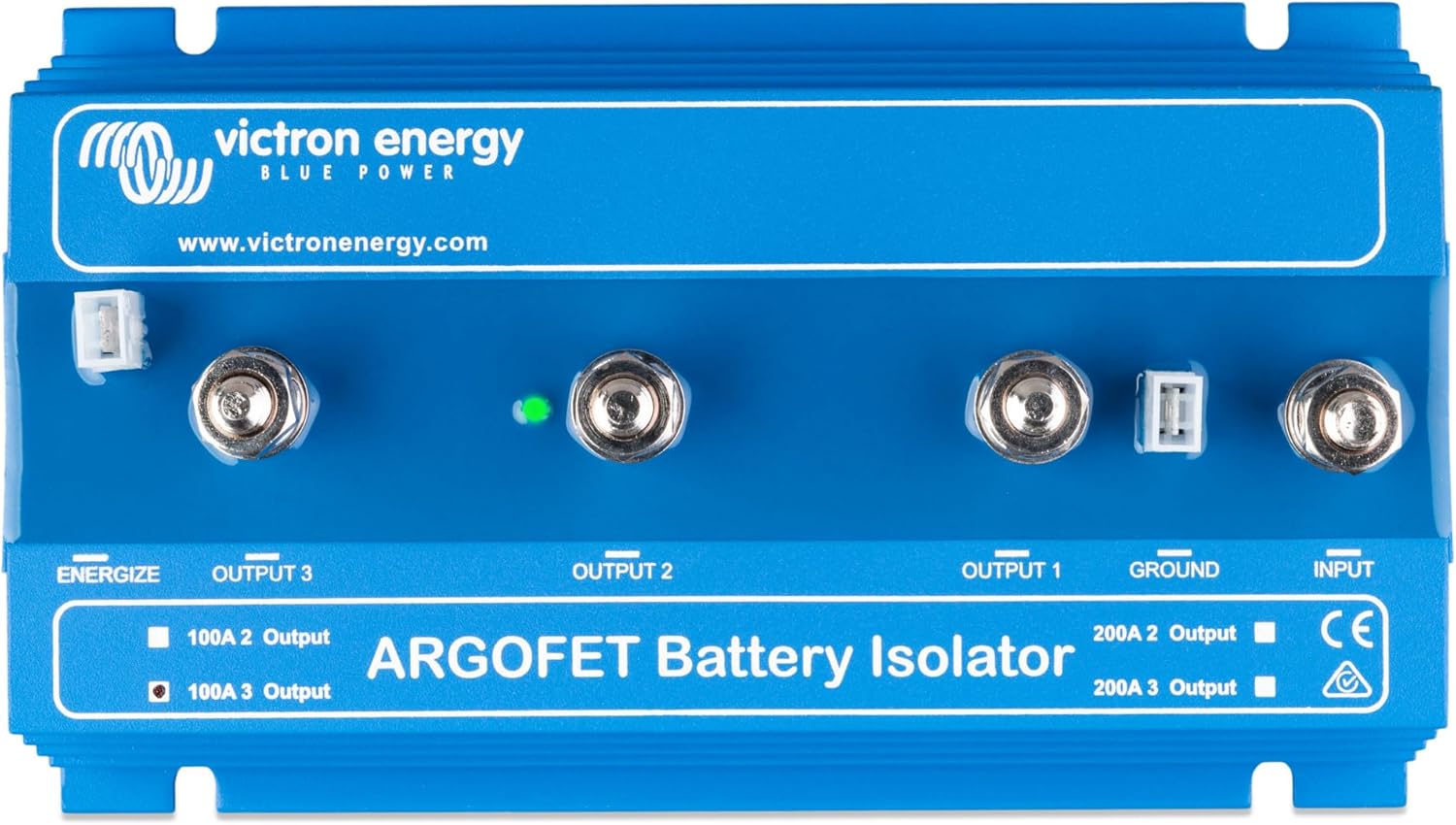

Victron Energy 100-3AC 2-Ports 100A 12/24V Battery Isolator Argofet System, Blue (Used)

Victron Energy 100-3AC 2-Ports 100A 12/24V Battery Isolator Argofet System, Blue (Used)

$46.99 USD
$114.75 USD $46.99 USD
Deal Sold out
Shipping calculated at checkout.

The Victron Energy Arb180301020 Argofet Battery Isolator enables simultaneous charging of up to three batteries from a single alternator without connecting them together. Designed for 12V and 24V systems, it automatically adjusts to the correct voltage for flexible installation. Advanced FET technology ensures minimal voltage drop—less than 0.02V at low current and around 0.1V at higher loads—providing efficient power distribution. It prevents accessory battery discharge from affecting the starter battery, making it ideal for marine, automotive, and RV applications. With a 100A current rating and durable construction, this isolator offers reliable multi-battery management without requiring alternator voltage adjustments.

Specifications:

  • Victron Energy Argofet battery isolators 100-3AC, allow simultaneous charging of three batteries from one alternator, without connecting the batteries together
  • 12/24 Volt auto ranging: Victron Energy Argofet battery isolator will automatically adjust to a 12-Volt or 24-Volt system
  • In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0.02-Volt at low current and averages 0.1-Volt at higher currents
  • Discharging the accessory battery for example will not result in also discharging the starter battery
  • When using Victron Energy ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. However, care should be taken to keep cable lengths short and of sufficient cross section

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Part Number: 100-3AC
Model Number: Arb180301020
Output Voltage: 24 Volts (Dc)
Input Voltage: 24 Volts
Current Rating: 100 Amps
Amperage: 180 Amps
Number Of Ports: 2
Item Type Name: Victron Energy Argofet Battery Isolators 100-3Ac (3 Batteries 100 Amp)
Built-In Media: Victron Energy Argofet Battery Isolators 100-3Ac (3 Batteries 100 Amp)
Unit Count: 1 Count
Item Weight: 1.47 Kilograms

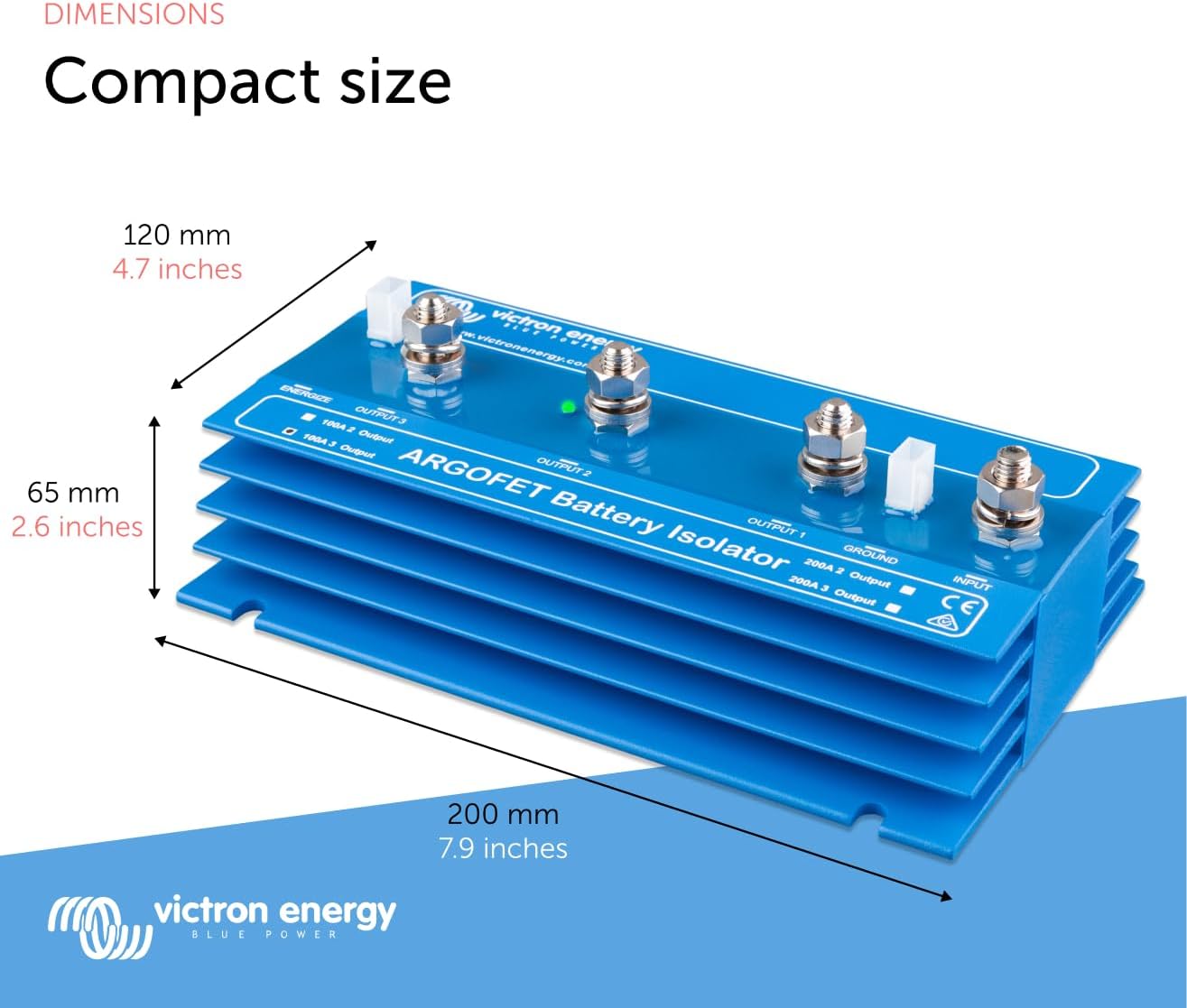

Item Dimensions (D X W X H): 7.9"D X 4.7"W X 2.6"H
