Victron Energy ARG100201020 Argofet Battery Chargers, 100 Amps, 24 Volts - Blue (Used)

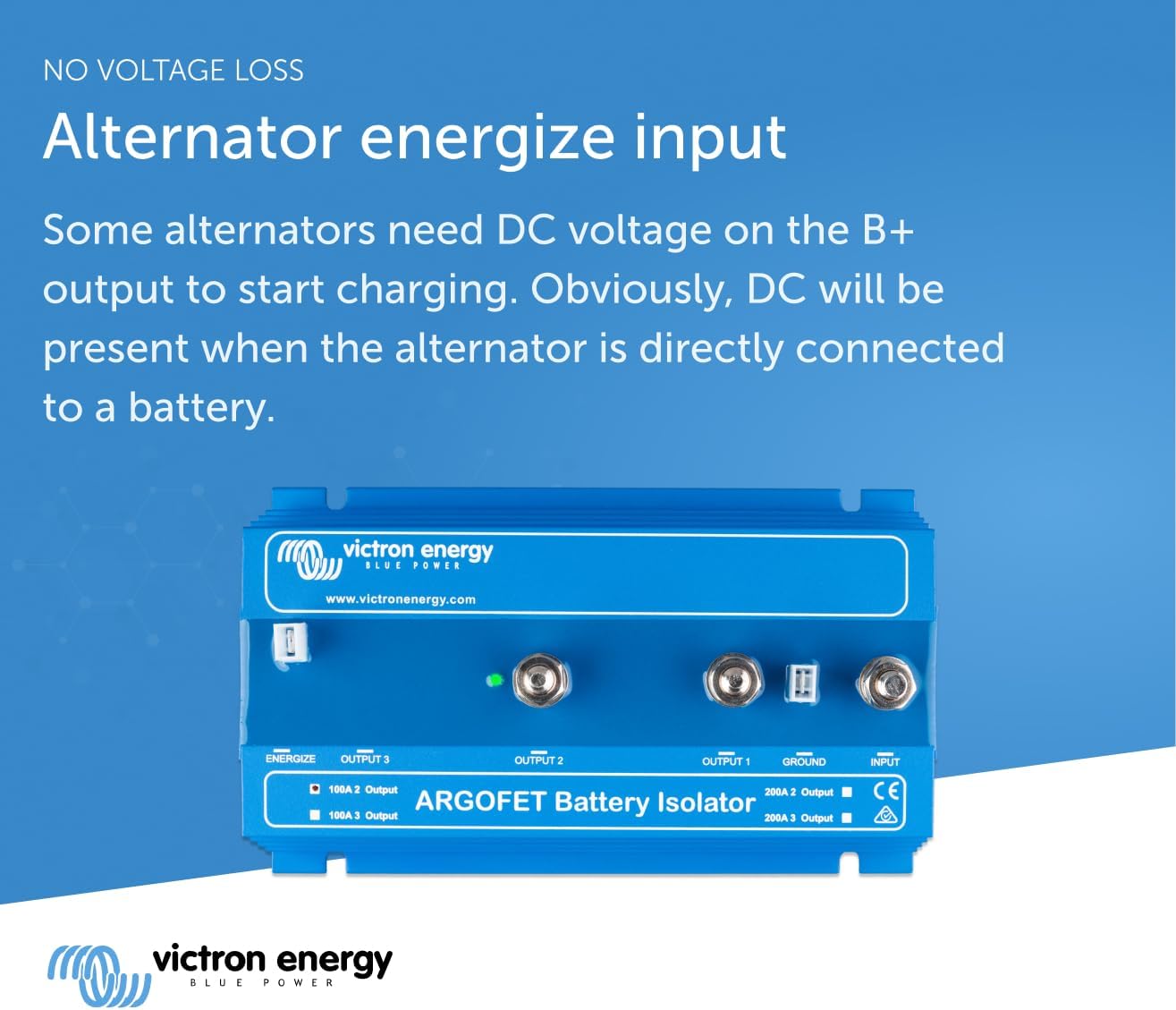

Argofet battery isolators with alternator energize input allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with Argodiode battery isolators, Argofet isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents. Some alternators need DC voltage on the B+ output to start charging. Inserting a Diode or FET splitter will normally prevent any return voltage/current from the batteries to the B+, but Argofet isolators feature a special current limited energize input that powers the B+ when the engine run/stop switch is closed. This ensures your alternator starts charging immediately while keeping your starter and accessory batteries isolated.

Specifications:

• Victron Energy Argofet battery isolators 100-2AC, allow simultaneous charging of two batteries from one alternator, without connecting the batteries together
• 12/24 Volt auto ranging: Victron Energy Argofet battery isolator will automatically adjust to a 12-Volt or 24-Volt system
• In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0.02-Volt at low current and averages 0.1-Volt at higher currents
• Discharging the accessory battery for example will not result in also discharging the starter battery
• When using Victron Energy ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. However, care should be taken to keep cable lengths short and of sufficient cross section

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Color: Blue
Model Number: ARG100201020
System Voltage: 12/24 Volts (Auto Ranging)
Maximum Charge Current: 100 Amps
Number of Batteries: 2
Alternator Energize Input: Yes
Connection: M8 Bolts
Unit Count: 1 Count
Item Height: 6.5 Centimeters
Item Weight: 0.2 Pounds

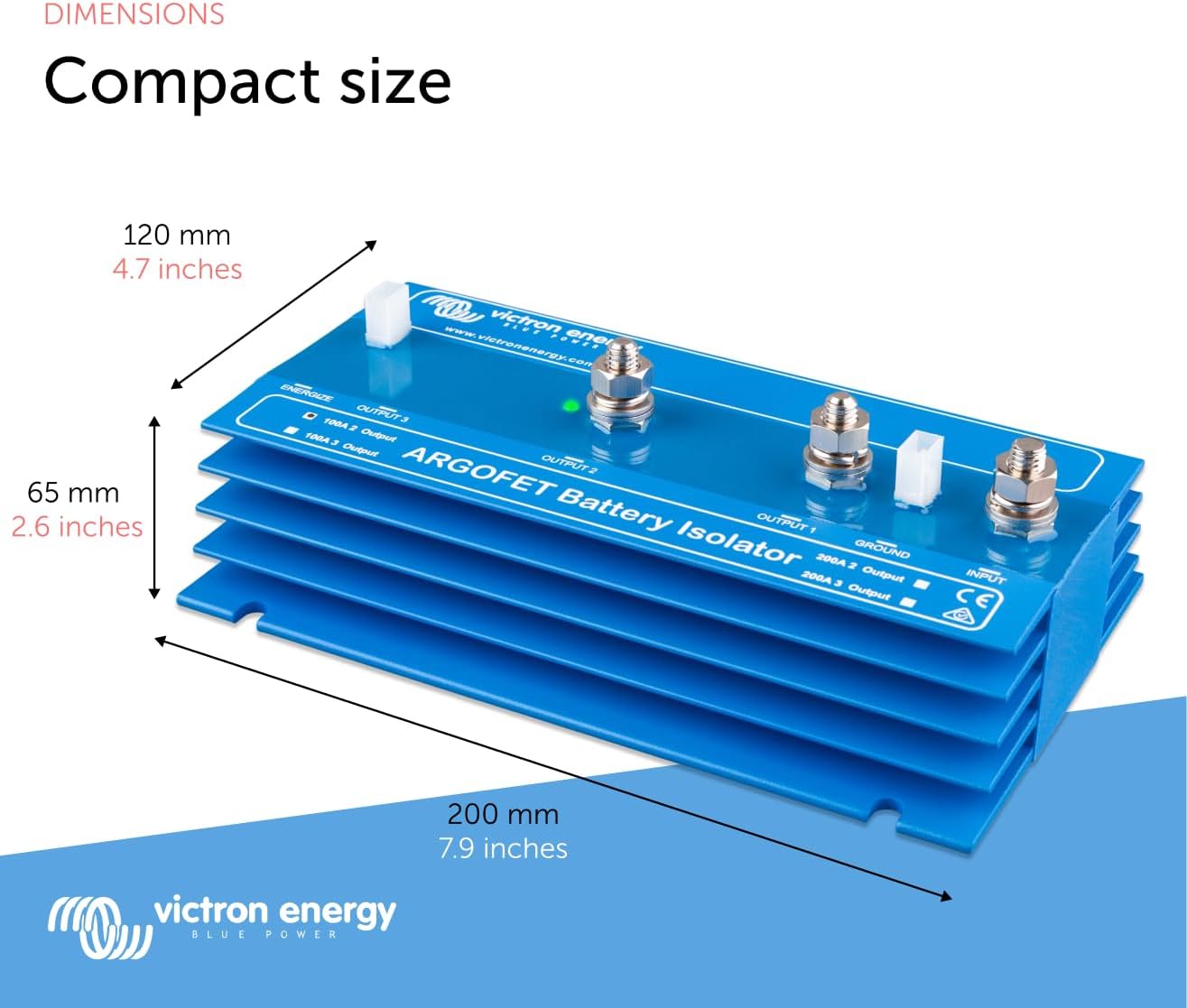

Item Dimensions (D X W X H): 7.9"D X 4.7"W X 2.6"H
