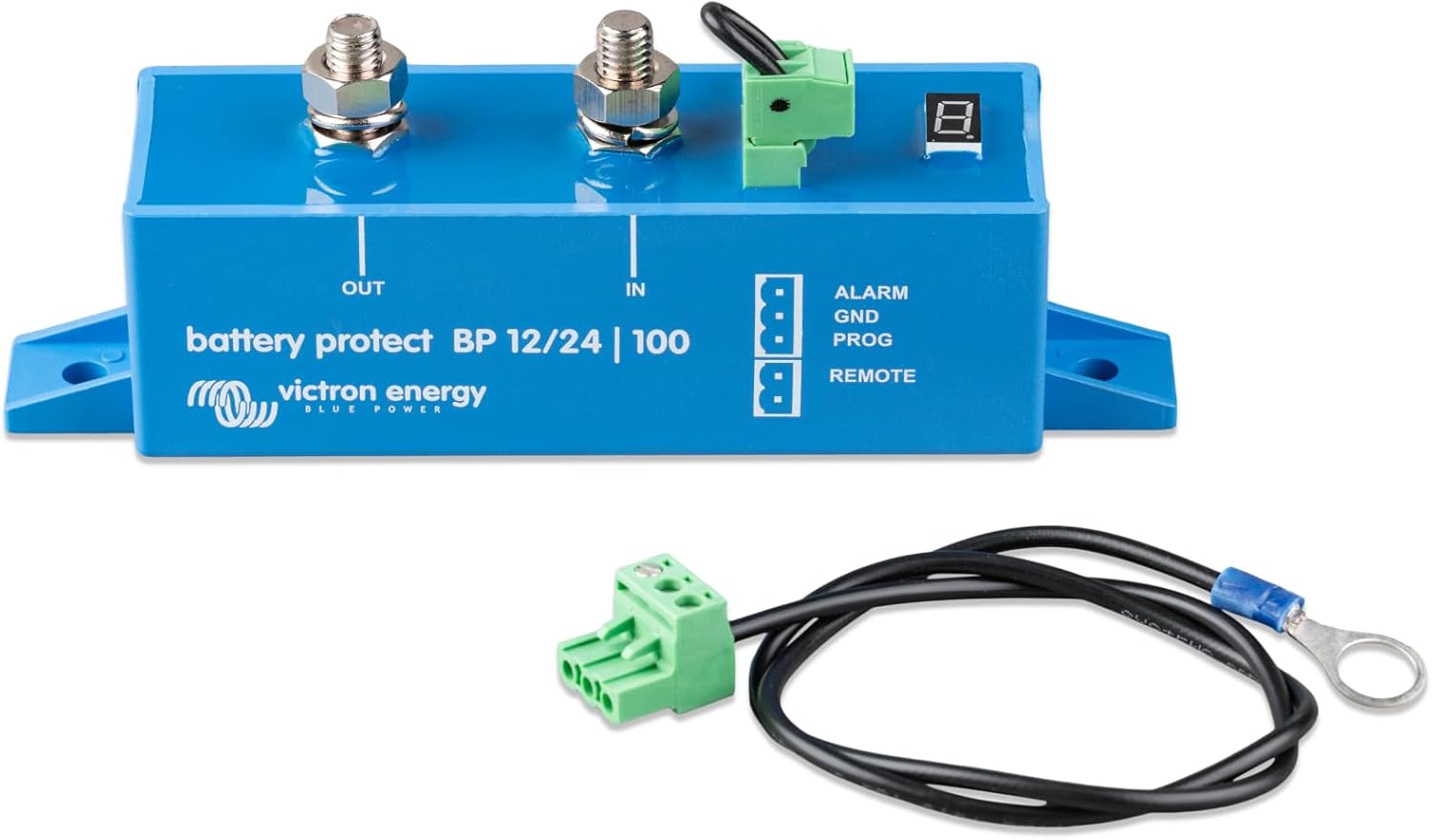

Victron Energy BPR000100400 Auto Ranging Battery Protect Detects System, 12/24V (Like New)

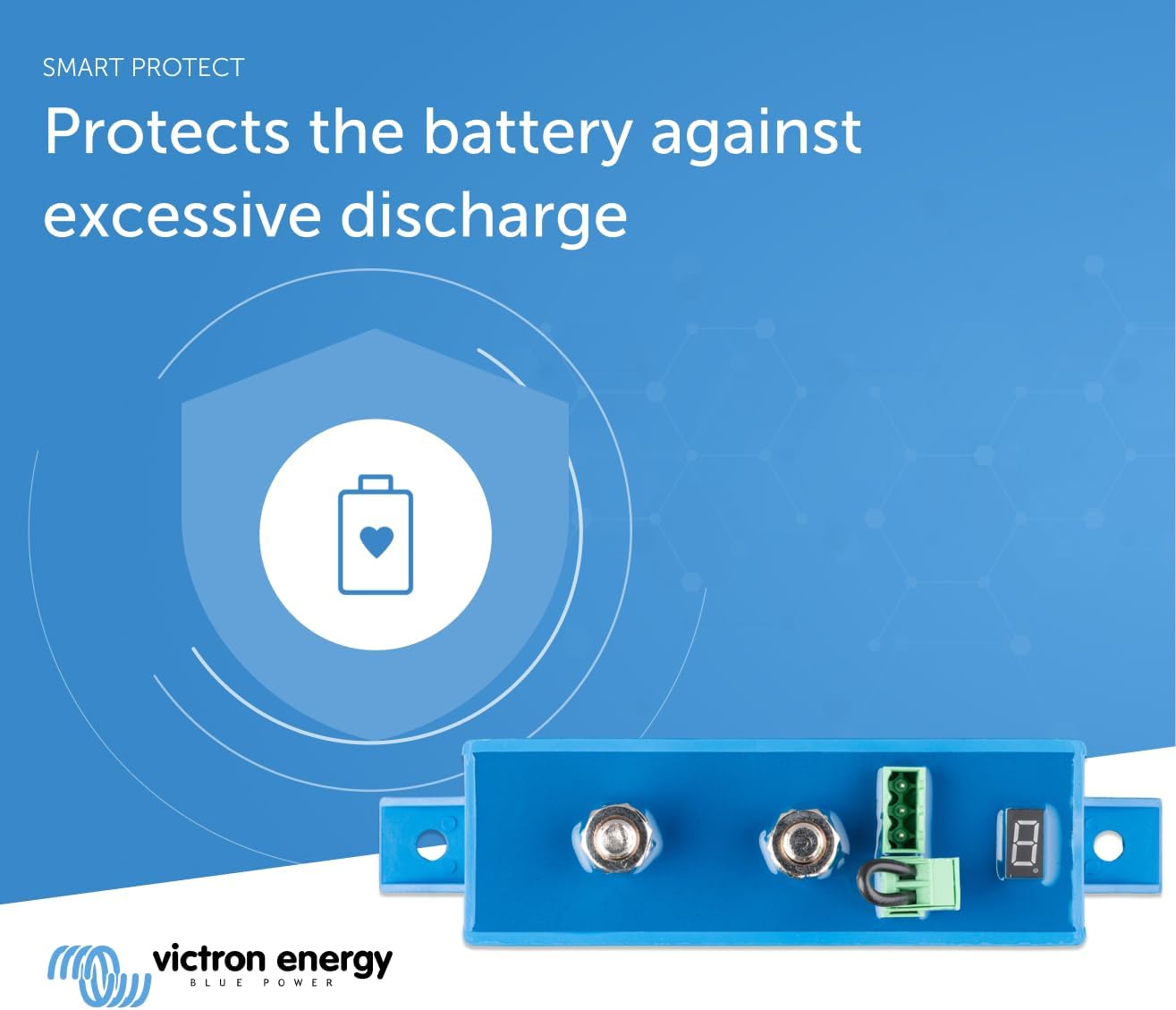

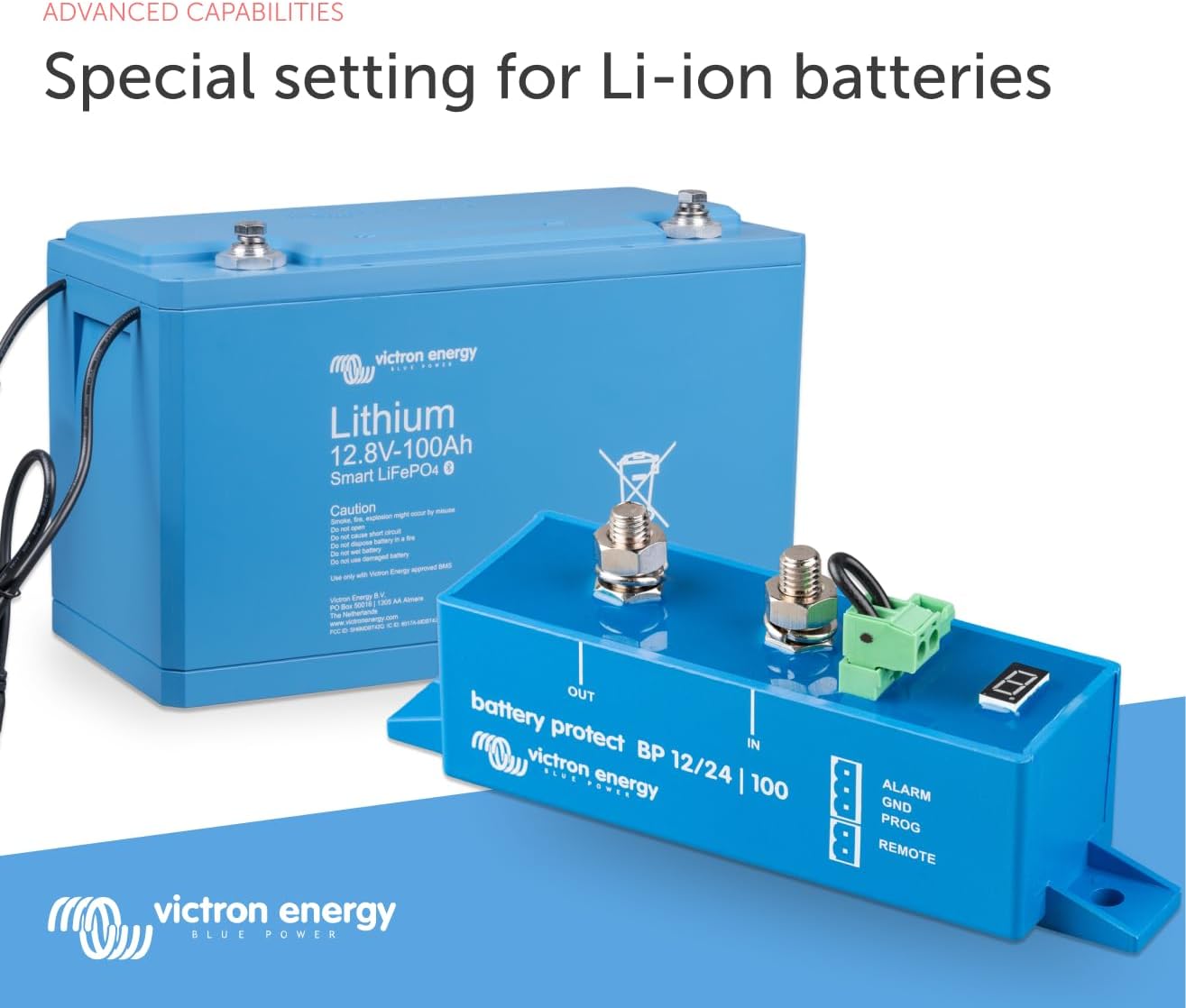

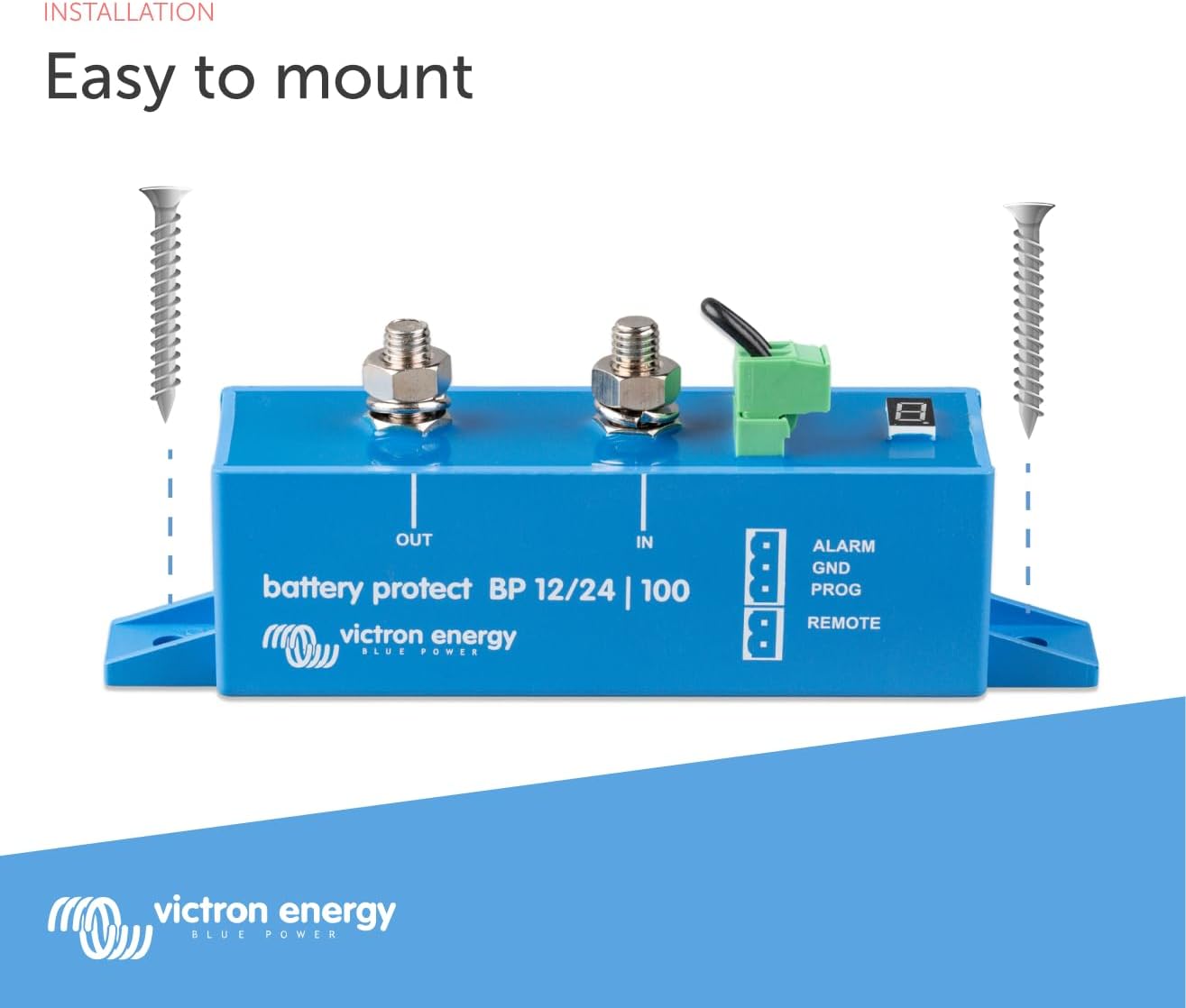

The Battery Protect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. Only select the Li-lon mode if your BMS has a load disconnect and/or a charge disconnect output. This is usually not the case for so-called drop-in batteries with internal BMS. For lithium batteries/BMS without a load disconnect output, select mode A or B instead. The Battery Protect has two 5.5 mm holes for mounting purposes located in the base of the Battery Protect. The holes can be used to screw or bolt the BatteryProtect onto a hard surface

Specifications:

• Victron Energy BatteryProtect 12/24-Volt 100 amp disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine
• Maximum continuous load current 100 amp and Peak current (during 30 seconds) 600 amp
• 12/24-Volt auto ranging - Victron Energy BatteryProtect automatically detects system voltage
• Victron Energy BatteryProtect can be set to engage / disengage at several different voltages; the seven-segment display will indicate which setting has been chosen
• Incorrect installation can be hazardous. Please consult a licensed professional and follow all applicable electrical codes during installation

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Mfr Part Number: BPR000100400
Item Type Name: Victron Energy BatteryProtect 12/24-Volt 100 amp
Built-In Media: Victron Energy BatteryProtect 12/24-Volt 100 amp
Item Height: 4.8 centimetres
Unit Count: 1.0 Count
Specification Met: Energy
Output Voltage: 24 Volts
Input Voltage: 24 Volts
Current Rating: 100 Amps
Item Weight: 0.5 Kilograms

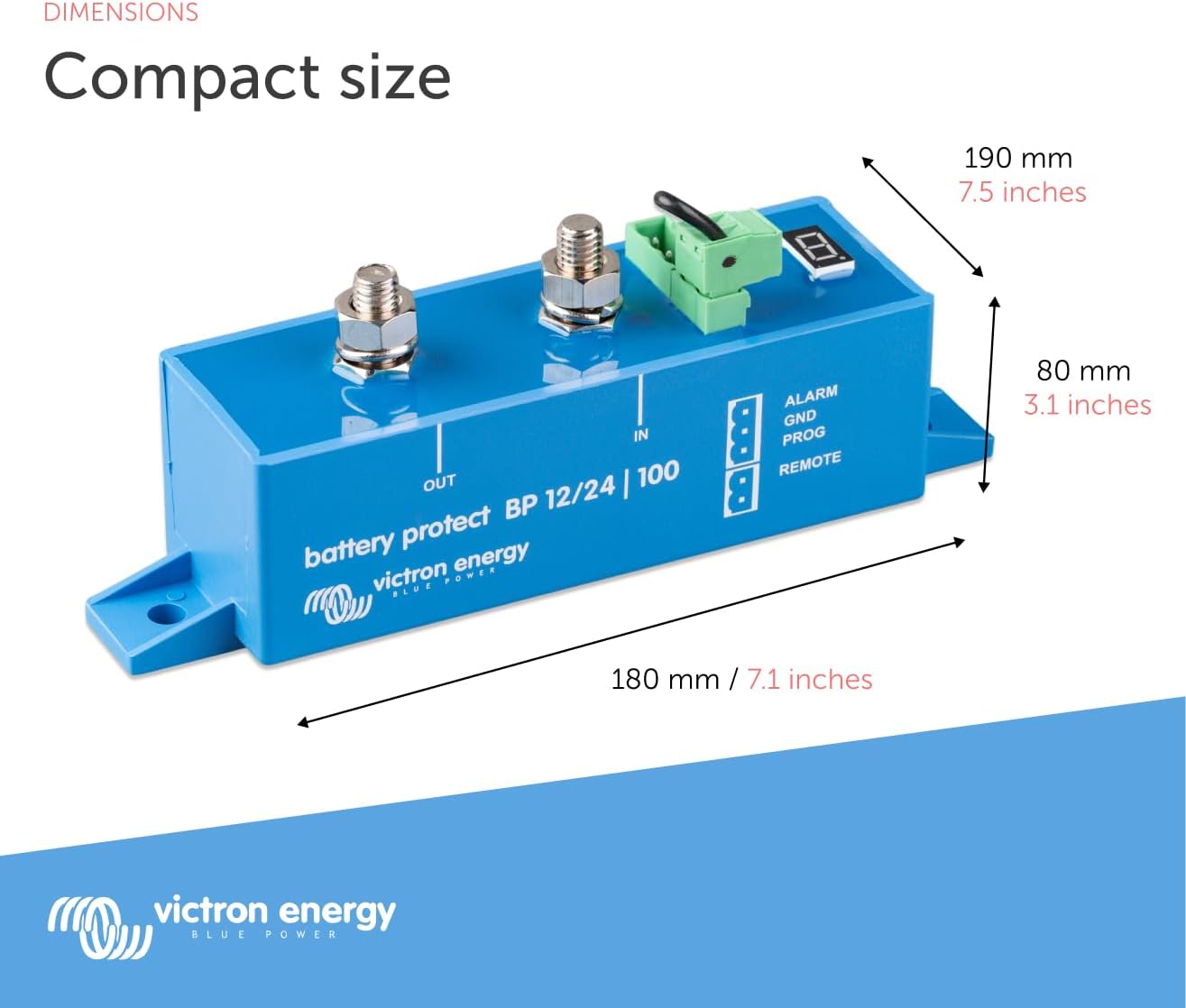

Item Dimensions (D x W x H): 7.48"D x 7.09"W x 3.1"H
