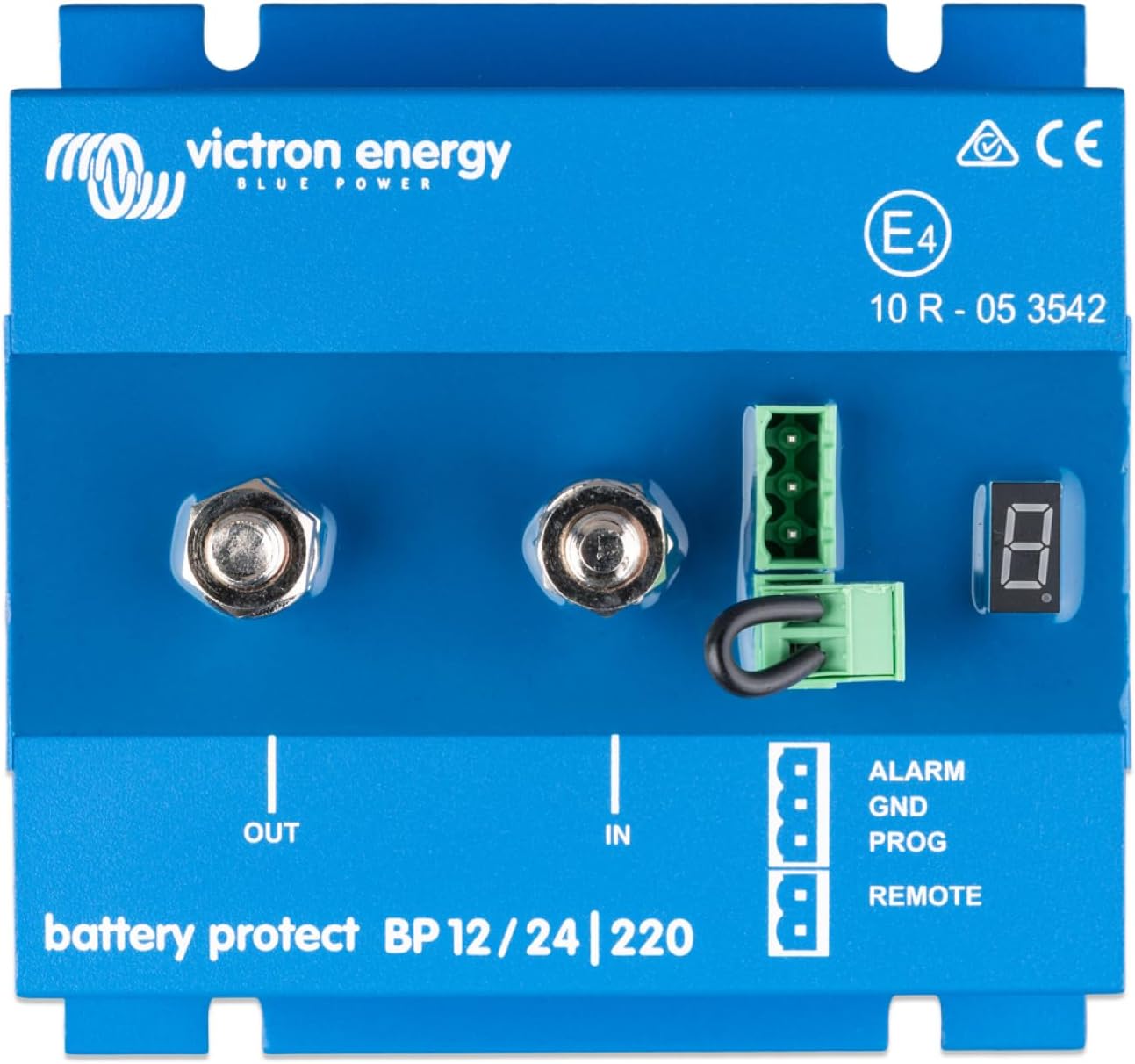

Victron Energy BPR000220400 12/24-V BatteryProtect Auto Disconnect Module (Like New)
Victron Energy BPR000220400 12/24-V BatteryProtect Auto Disconnect Module (Like New)
Couldn't load pickup availability

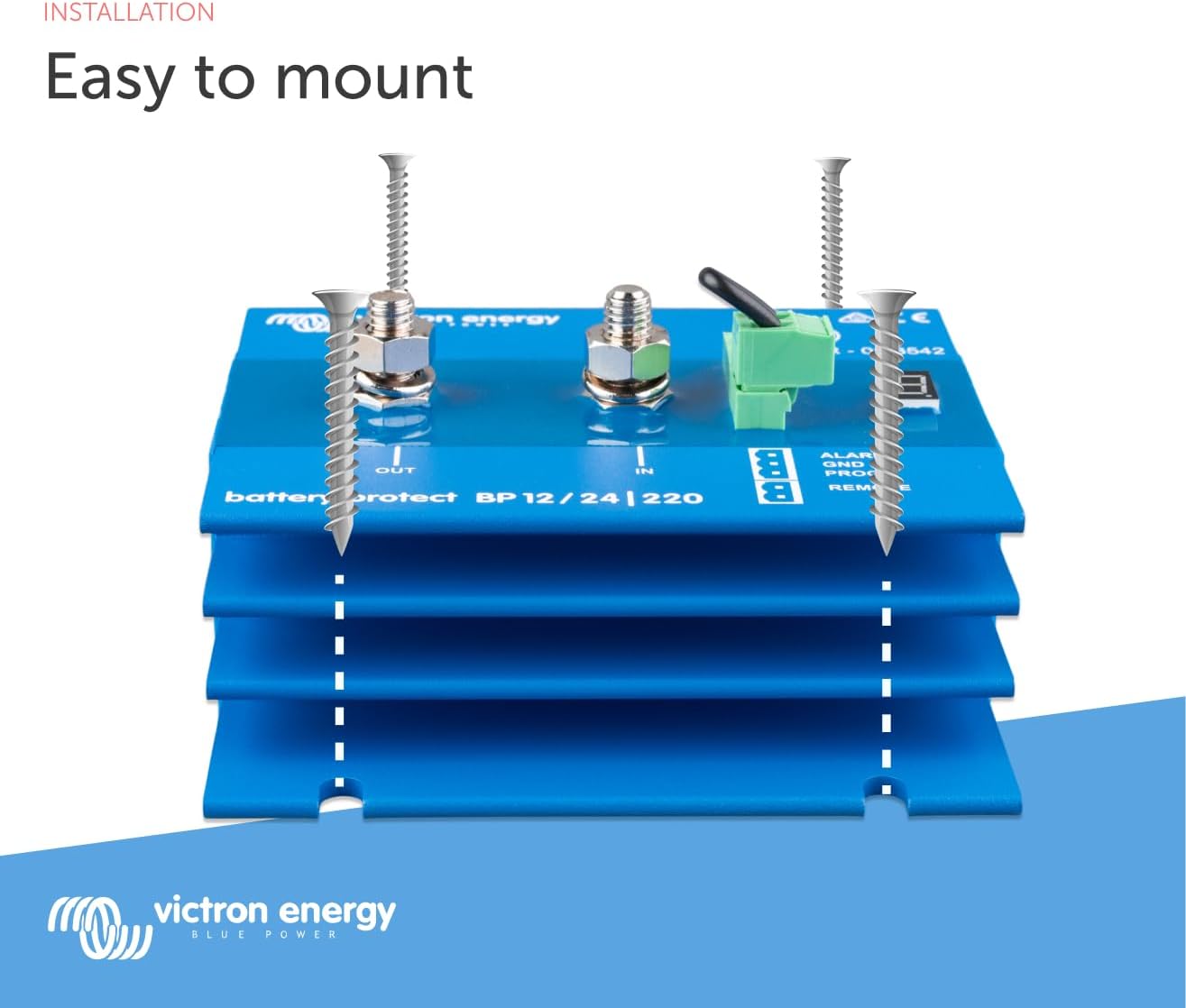

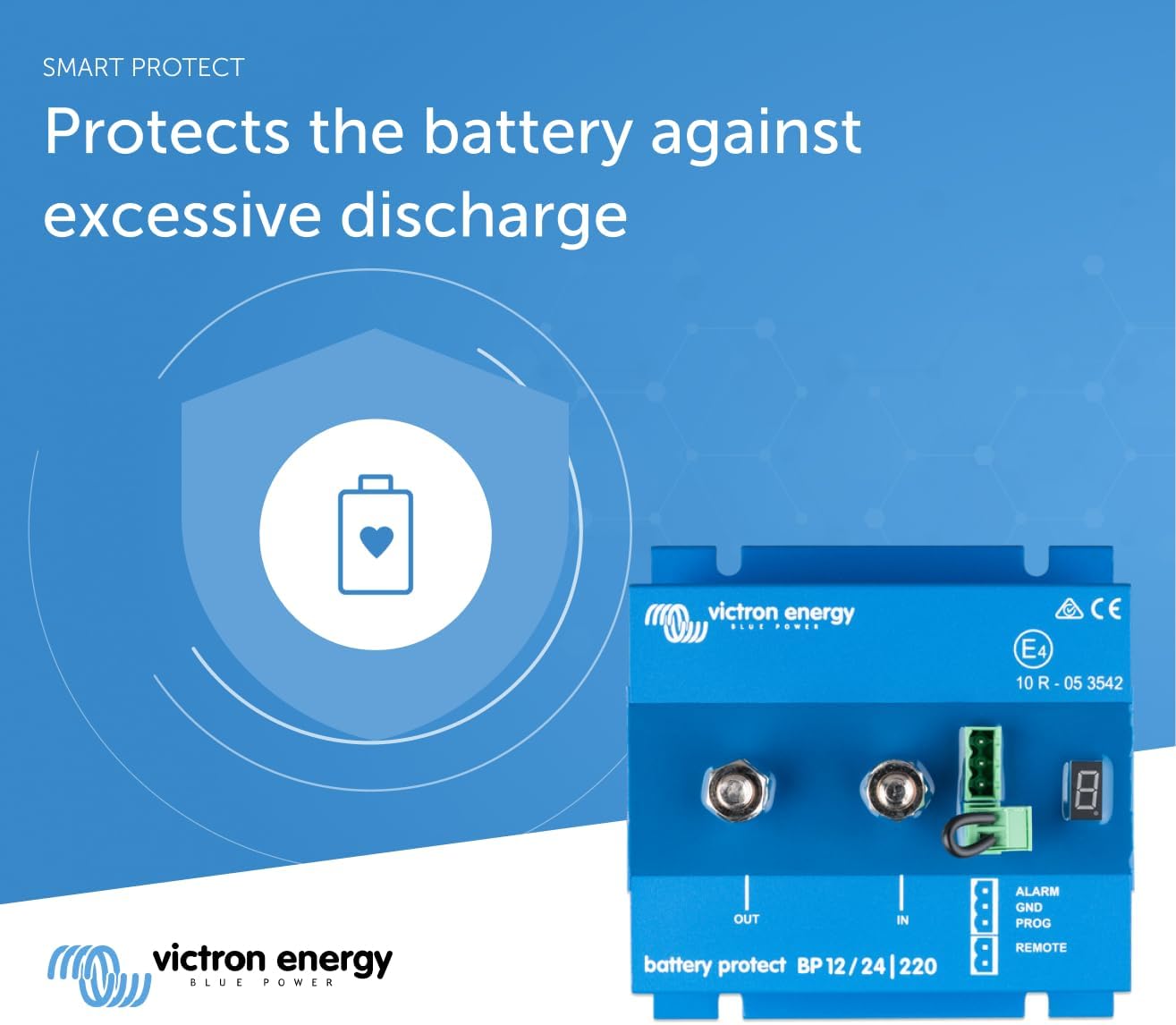

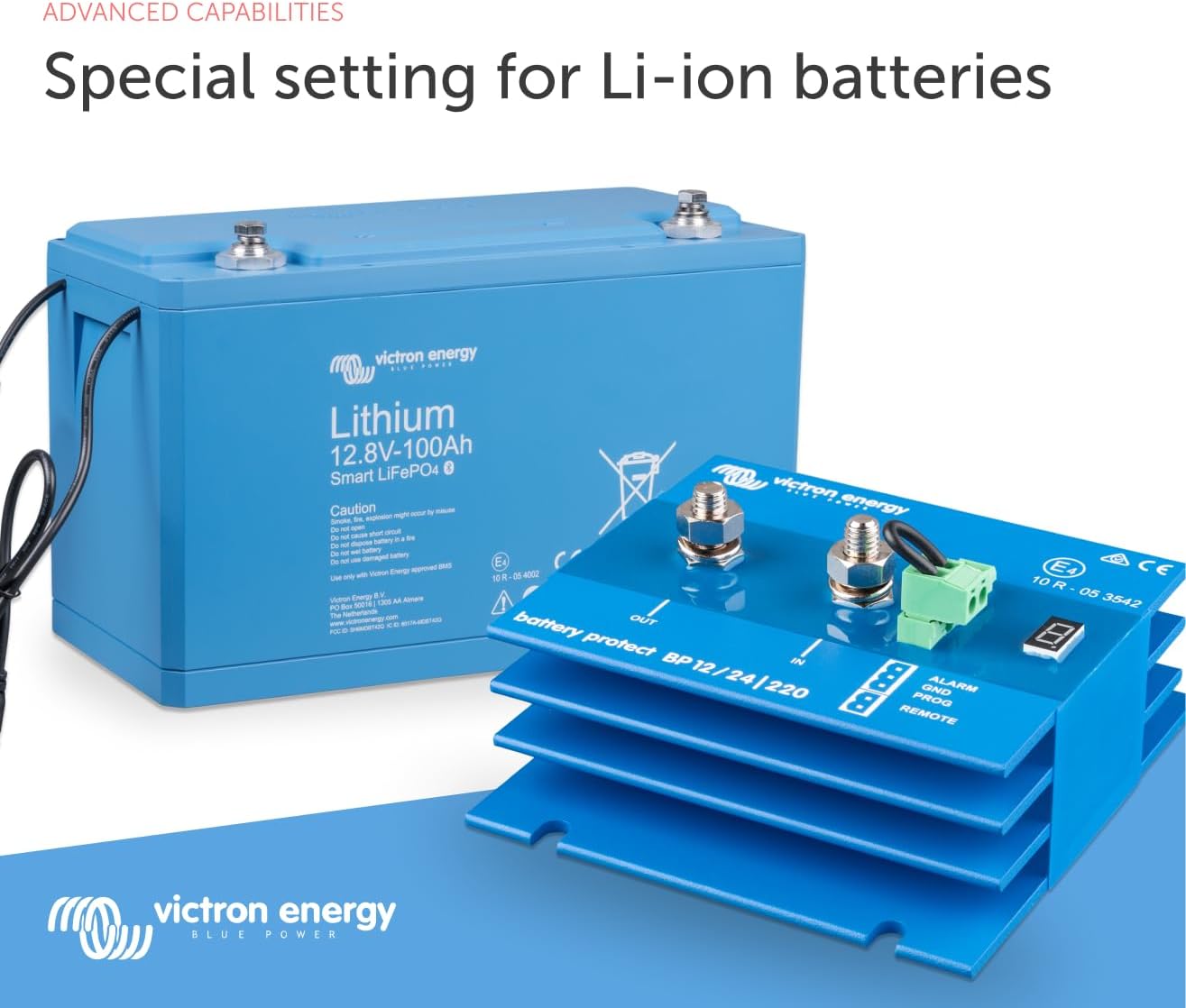

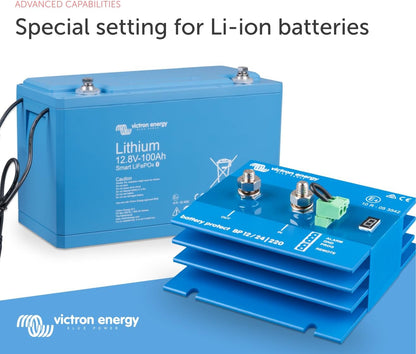

The Battery Protect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. Only select the Li-lon mode if your BMS has a load disconnect and/or a charge disconnect output. This is usually not the case for so-called drop-in batteries with internal BMS. For lithium batteries/BMS without a load disconnect output, select mode A or B instead. The Battery Protect features four 5.5 mm holes for mounting purposes, located on the base of the Device. The holes can be used to screw or bolt the BatteryProtect onto a hard surface
Specifications:
- Victron Energy BatteryProtect 12/24-Volt 220 amp disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine
- Maximum continuous load current 220 amp, and Peak current (during 30 seconds) 600 amp
- 12/24-Volt auto ranging - Victron Energy BatteryProtect automatically detects system voltage
- Victron Energy BatteryProtect can be set to engage / disengage at several different voltages; the seven-segment display will indicate which setting has been chosen
- Incorrect installation can be hazardous. Please consult a licensed professional and follow all applicable electrical codes during installation
Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Mfr Part Number: BPR000220400
Unit Count: 1.0 Count
Input Voltage: 24 Volts
Current Rating: 220 Amps
Item Weight: 0.8 Kilograms

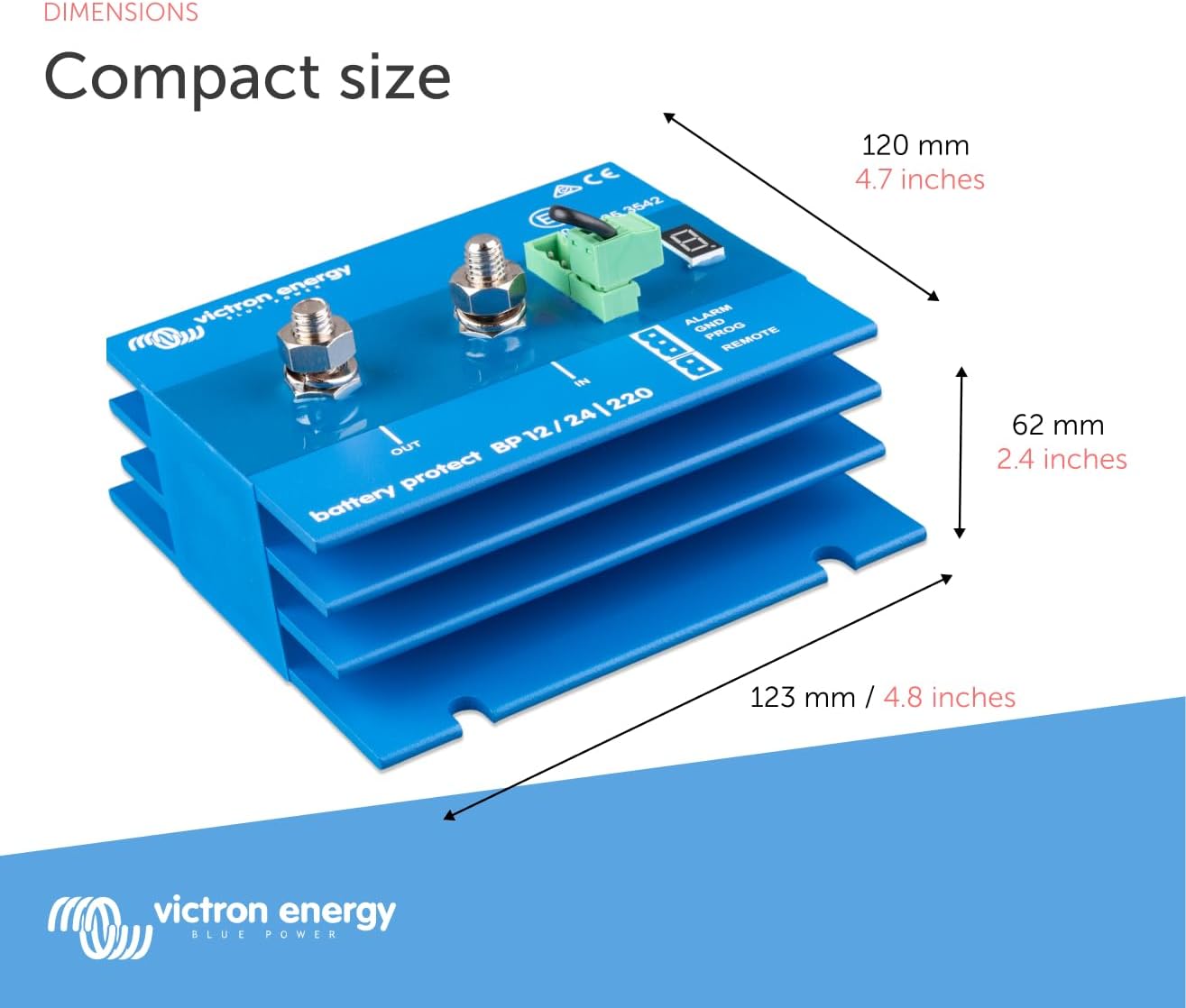

Item Height: 2.5 inches
