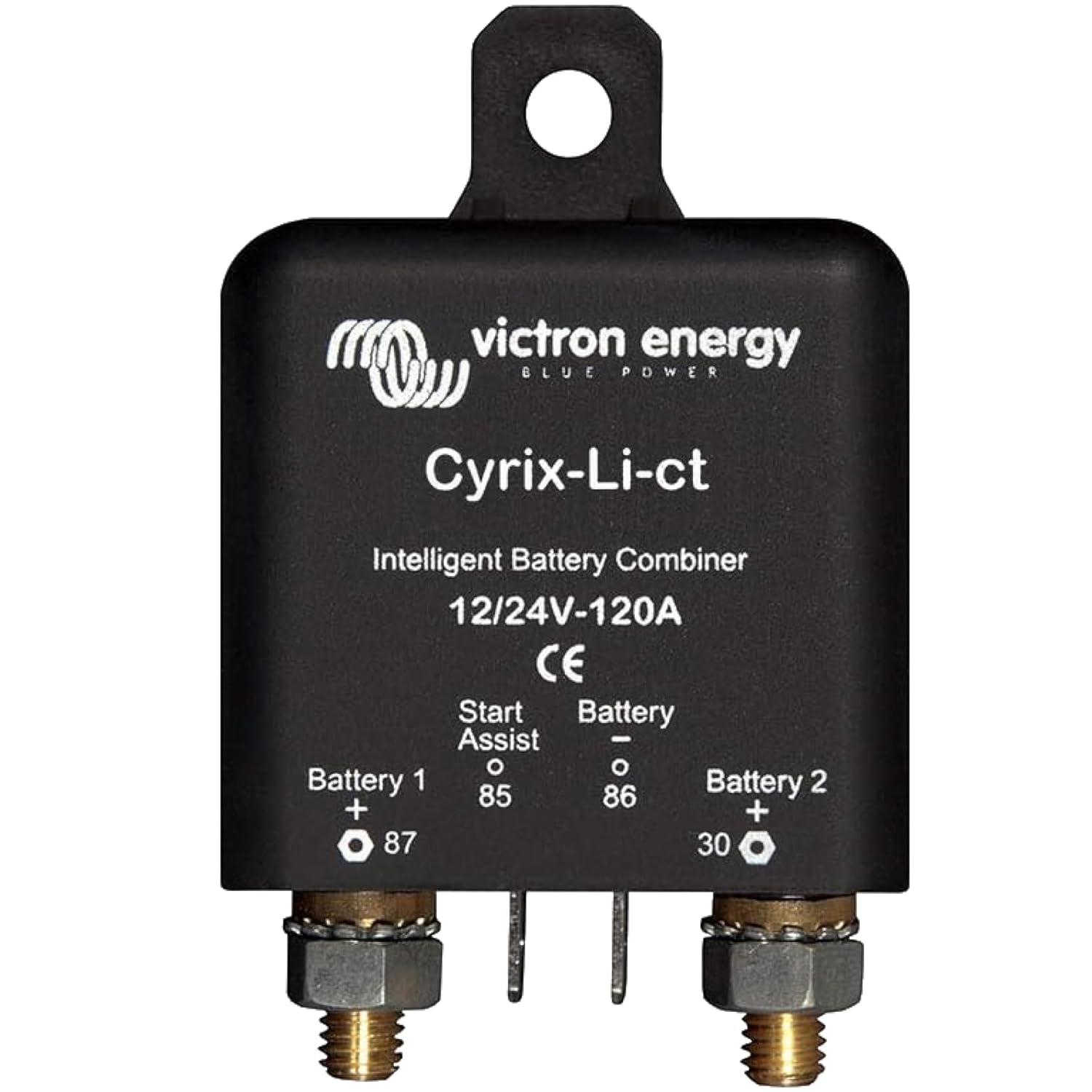

Victron Energy CYR010120412 Cyrix-Li-ct Battery Combiner, 12/24-Volt, 120 Amps (Used)

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased. 12/24 Volt auto ranging.

Specifications:

• Victron Energy Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage
• Victron Energy Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery
• Victron Energ Cyrix will disengage immediately: when its control output becomes free floating, signalling cell over voltage or cell over temperature and/or when battery voltage drops below 13.2V

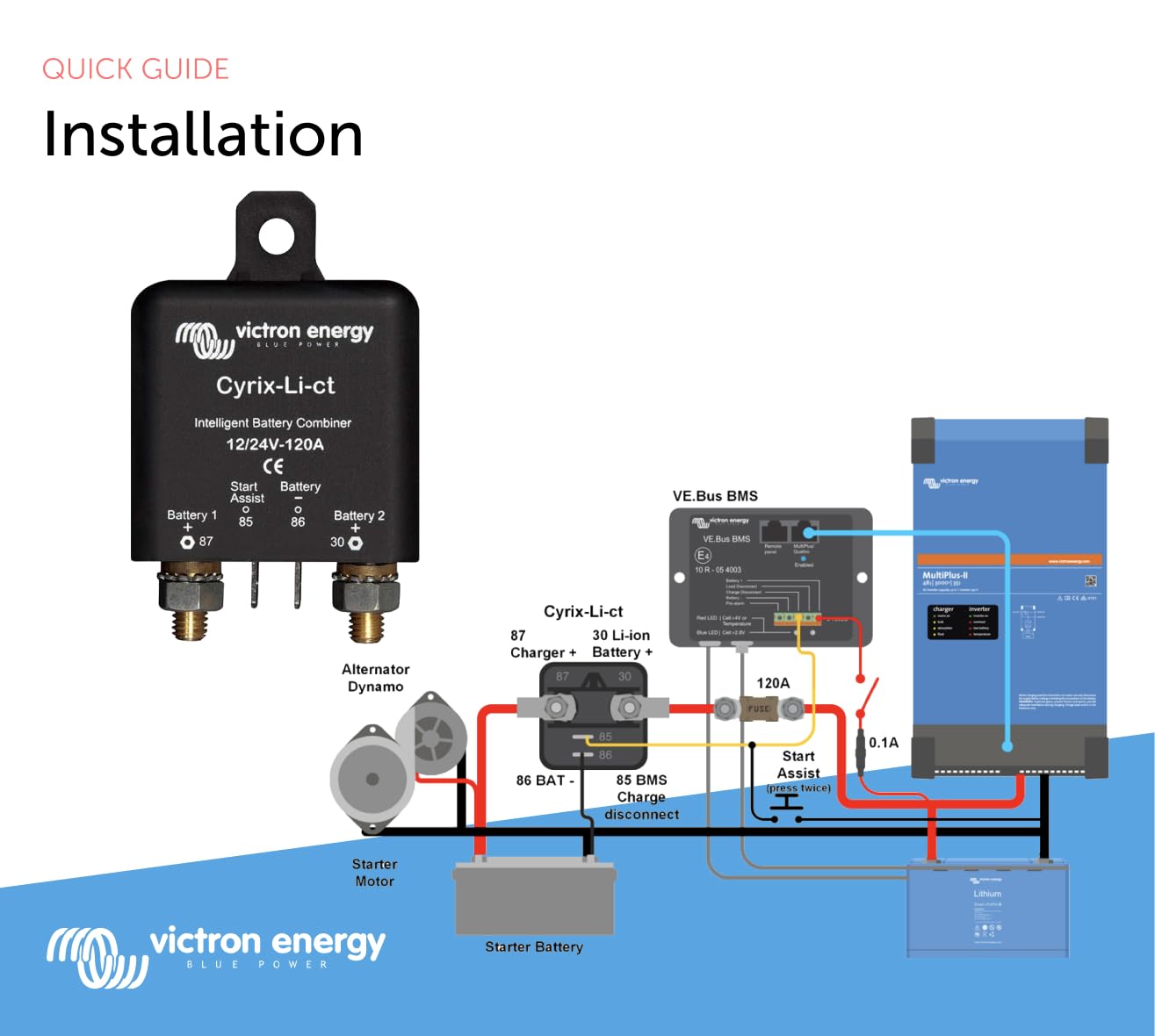

• Start assist function: a short negative pulse will close the relay during 30 seconds
• A built-in transient voltage suppressor will limit the voltage spike that may occur when Victron Energ Cyrix suddenly disengages due to cell overvoltage or over temperature

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Part Number: CYR010120412
Model Number: CYR010120412
Connector Type: Plug-In
Contact Material: Silver
Contact Type: Normally Closed
Current Rating: 120 Amps
Mounting Type: Plug In Mount
Date First Available: January 3, 2019

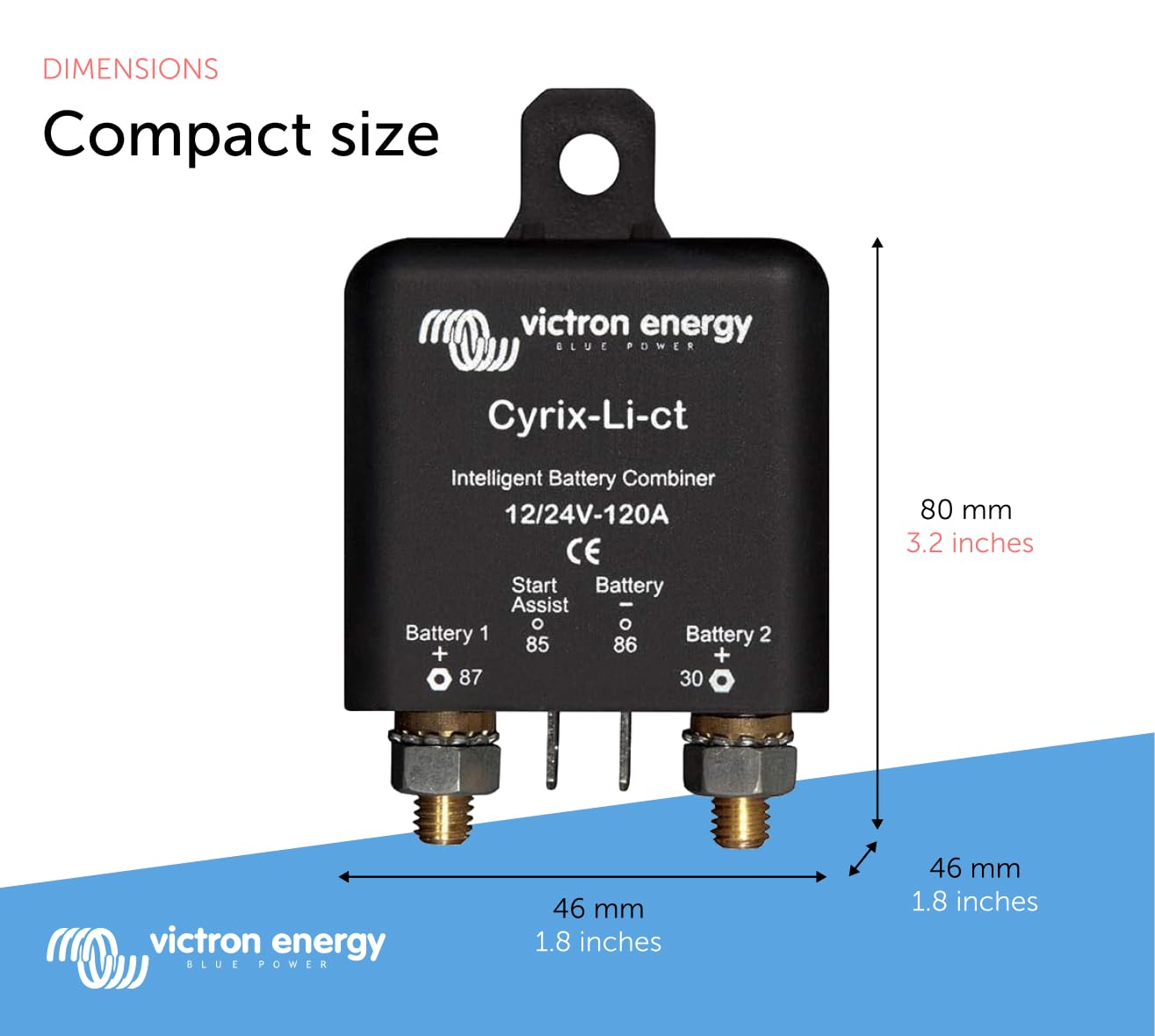

Item Height: 2.95 Inches
Item Weight: 3.88 Ounces
Item Dimensions (D x W x H): 2.56"D x 1.97"W x 2.95"H
