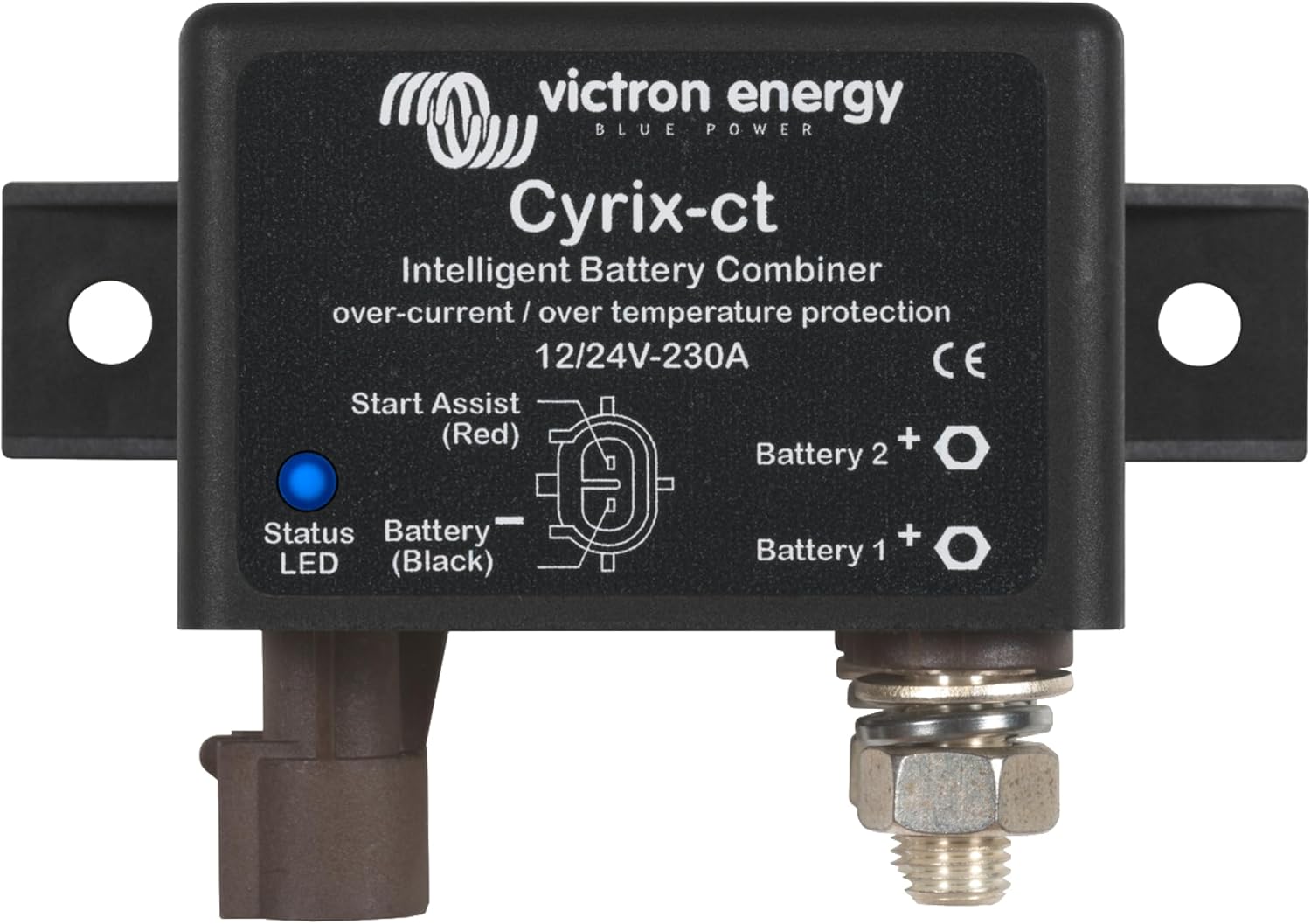

Victron Energy CYR010230010 Cyrix-ct Battery Combiner, 12 Volts (DC), 230 Amps (Used)
Victron Energy CYR010230010 Cyrix-ct Battery Combiner, 12 Volts (DC), 230 Amps (Used)
Couldn't load pickup availability
The Victron Energy Cyrix-Ct 12/24-Volt 230 Amp Intelligent Battery Combiner ensures efficient battery management for boats, RVs, and vehicles. It monitors battery voltage trends to prevent unwanted switching, protects against overheating, and allows emergency parallel connection for start assist. Unlike diode isolators, it delivers virtually no voltage loss, maintaining optimal alternator and charger output. Compact and reliable, this unit handles up to 230A and is compatible with 12V or 24V systems. Rechargeable and lightweight, it’s a must-have for safe and efficient battery operation.
Specifications:
- Intelligent battery monitoring to prevent unwanted switching: Victron Energy Cyrix-ct 12/24-Volt 230 amp looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend
- Protection against overheating (due to a long duration overload): Victron Energy Cyrix will disengage in case of excessive contact temperature, and reengage again after it has cooled down
- Parallel connection in case of emergency (Start Assist): Victron Energy Cyrix can also be engaged with a push button (Victron Energy Cyrix remains engaged during 30 seconds) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged
- No voltage loss: Victron Energy Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased
Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
UPC: 619639706919
Model Name: Victron Energy Cyrix-Ct 12/24-Volt 230 Amp Intelligent Battery Combiner
Model Number: CYR010230010
Item Type Name: Victron Energy Cyrix-Ct 12/24-Volt 230 Amp Intelligent Battery Combiner
Built-In Media: Victron Energy Cyrix-Ct 12/24-Volt 230 Amp Intelligent Battery Combiner
Voltage: 12 Volts (DC)
Reusability: Rechargeable
Amperage: 230 Amps
Battery Capacity: 24
Unit Count: 1 Count
Battery Weight: 1 Pounds
Antenna Location: Power Tool
Battery Cell Type: Lithium Ion
Item Weight: 0.27 Kilograms

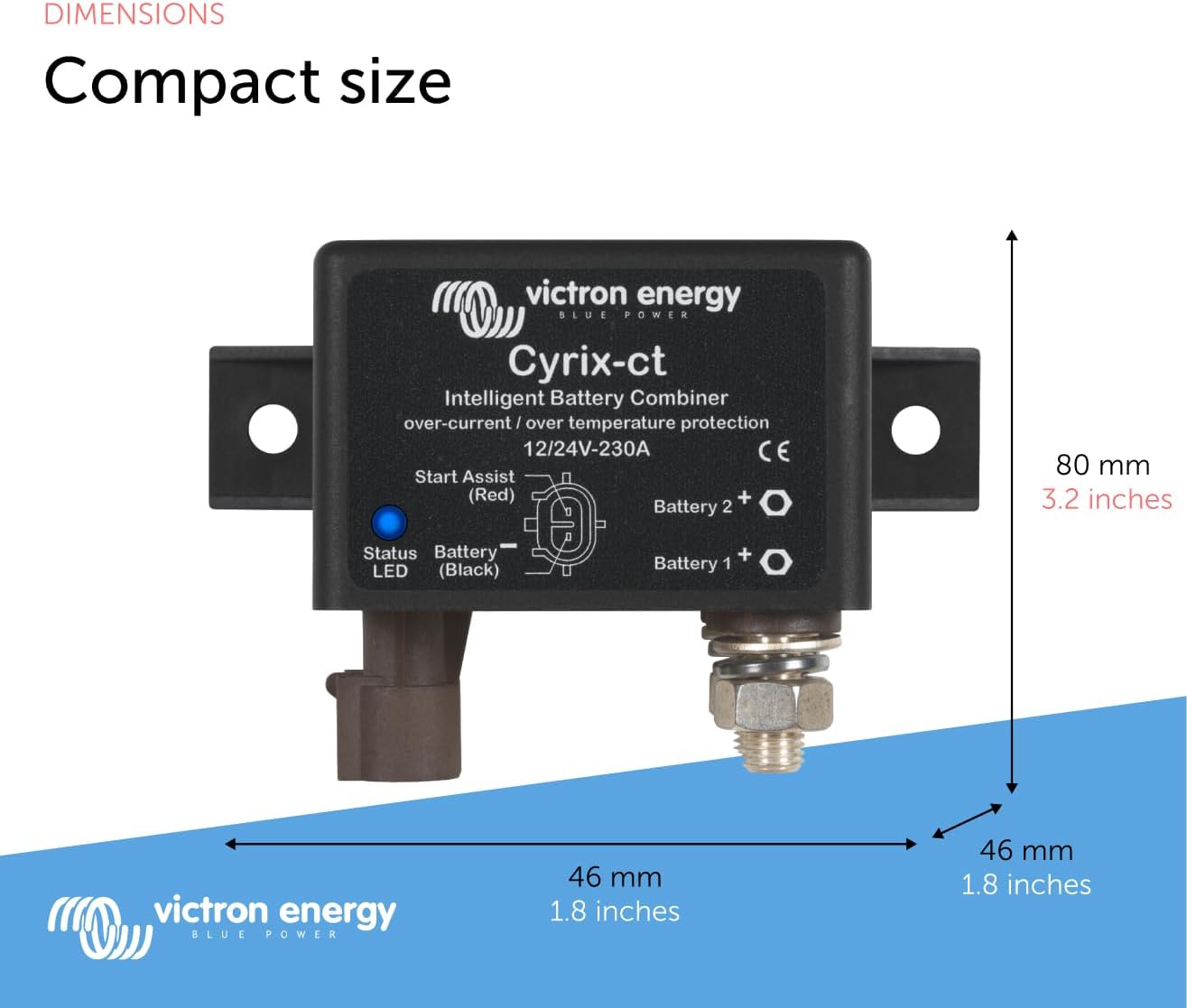

Item Dimensions (D X W X H): 2 X 4 X 2.6 Inches
