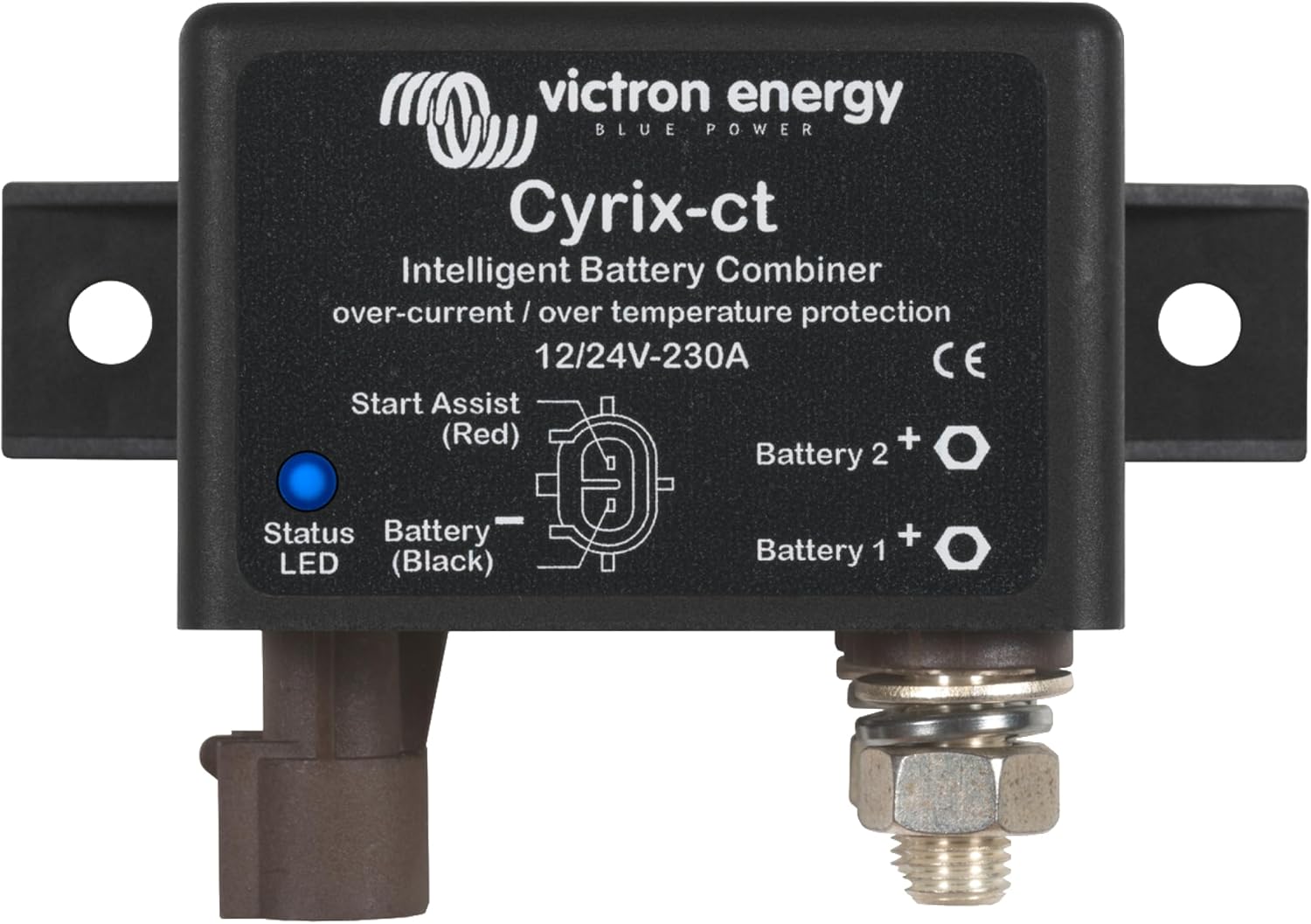

Victron Energy Cyrix-ct 230 amp Intelligent Battery Combiner, 12 Volts DC (Used, No Retail Box)
Victron Energy Cyrix-ct 230 amp Intelligent Battery Combiner, 12 Volts DC (Used, No Retail Box)
Couldn't load pickup availability
The Victron Energy Cyrix-ct 12/24V 230 Amp Intelligent Battery Combiner is designed to efficiently manage battery systems by monitoring voltage trends to prevent unwanted switching, protecting against overheating, and allowing manual parallel connection in emergencies. It provides virtually no voltage loss, making it an excellent alternative to diode isolators, and ensures reliable power distribution for vehicles, boats, or other battery-operated systems. Compact and rechargeable, it delivers 230 amps at 12 volts DC with smart, automated control for safer and more efficient battery management.
Specifications:
- Intelligent battery monitoring to prevent unwanted switching: Victron Energy Cyrix-ct 12/24-Volt 230 amp looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend
- Protection against overheating (due to a long duration overload): Victron Energy Cyrix will disengage in case of excessive contact temperature, and reengage again after it has cooled down
- Parallel connection in case of emergency (Start Assist): Victron Energy Cyrix can also be engaged with a push button (Victron Energy Cyrix remains engaged during 30 seconds) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged
- No voltage loss: Victron Energy Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased
Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Model Name: Victron Energy Cyrix-ct 12/24-Volt 230 amp Intelligent Battery Combiner
Model Number: CYR010230010
Item Type Name: Battery Combiner / Power Tool Accessory
Battery Cell Composition / Type: Lithium Ion
Battery Capacity: 24
Voltage: 12 Volts DC
Amperage: 230 Amps
Reusability: Rechargeable
Unit Count: 1
Battery Weight: 1 Pound

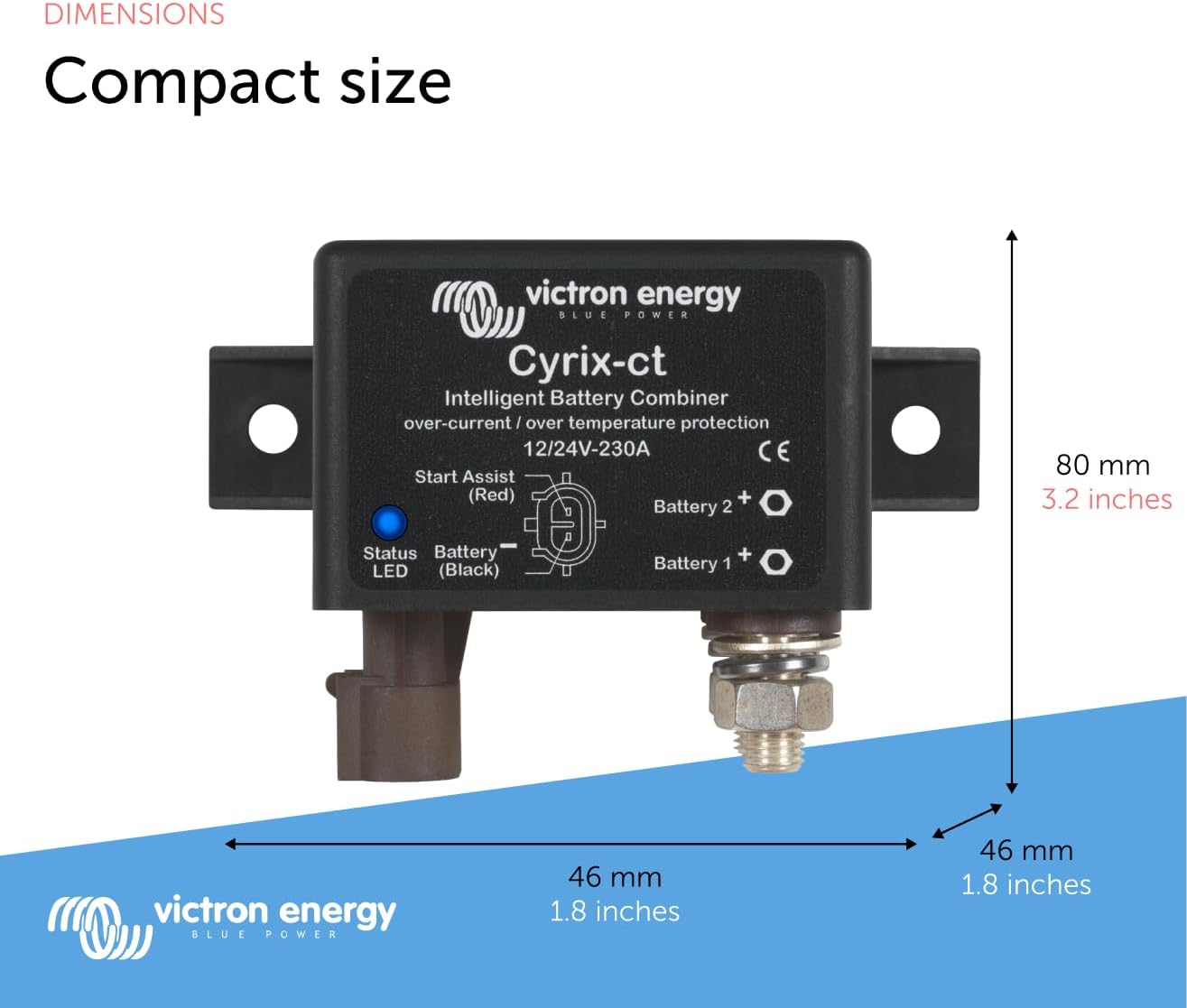

Item Dimensions (L x W x H): 2 x 4 x 2.6 inches
Item Weight: 0.27 Kilograms
Recommended Uses: Power Tool
Antenna Location: Power Tool
