Victron Energy LYN060102000 Energy Adults Lynx Distributor Modular M8 DC Bus Bar (Like New)

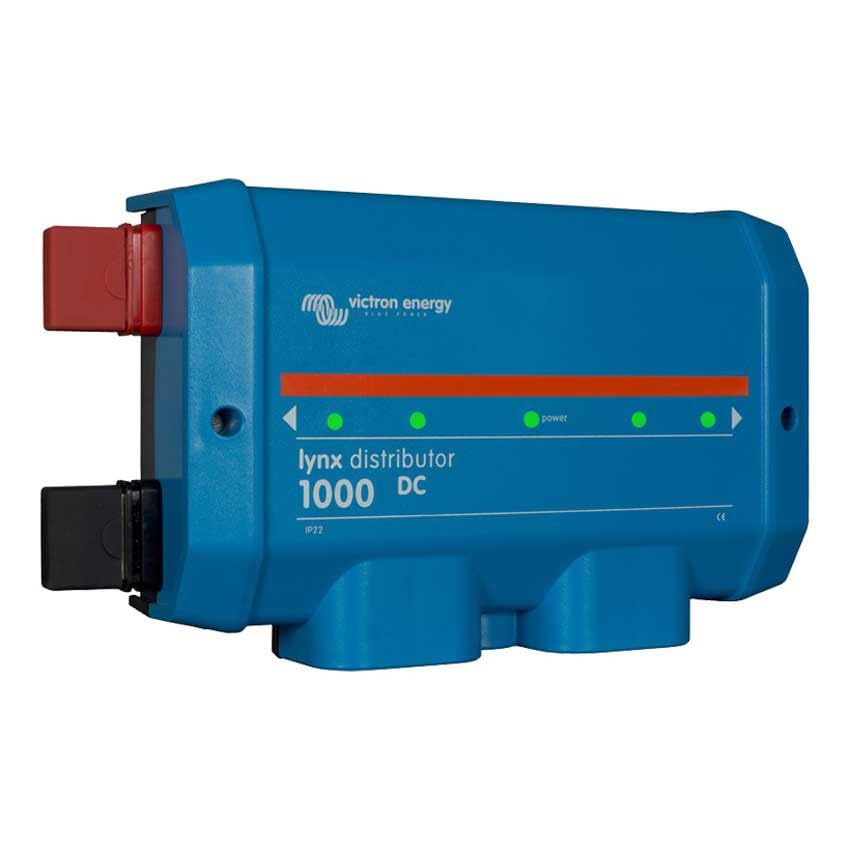

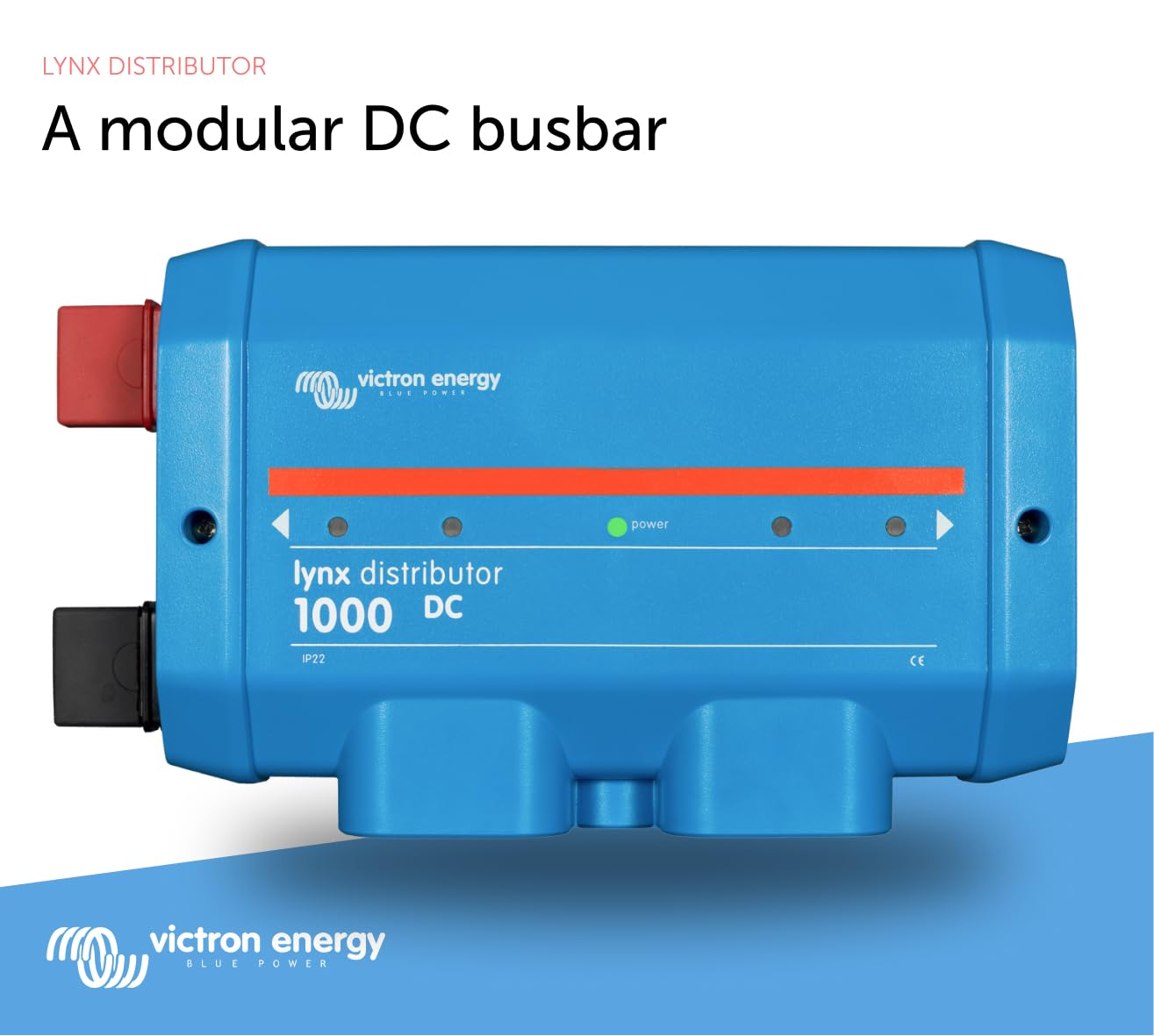

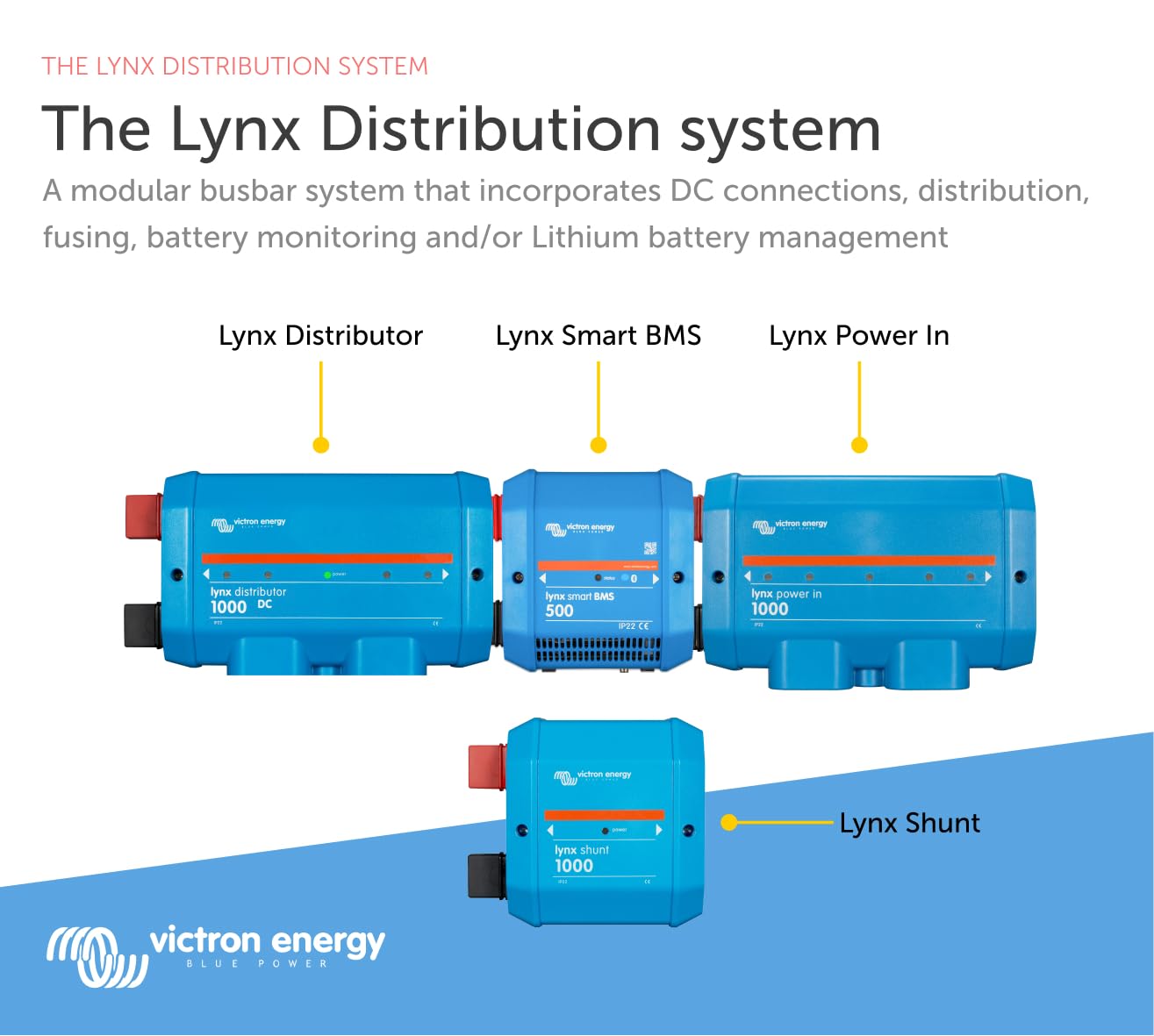

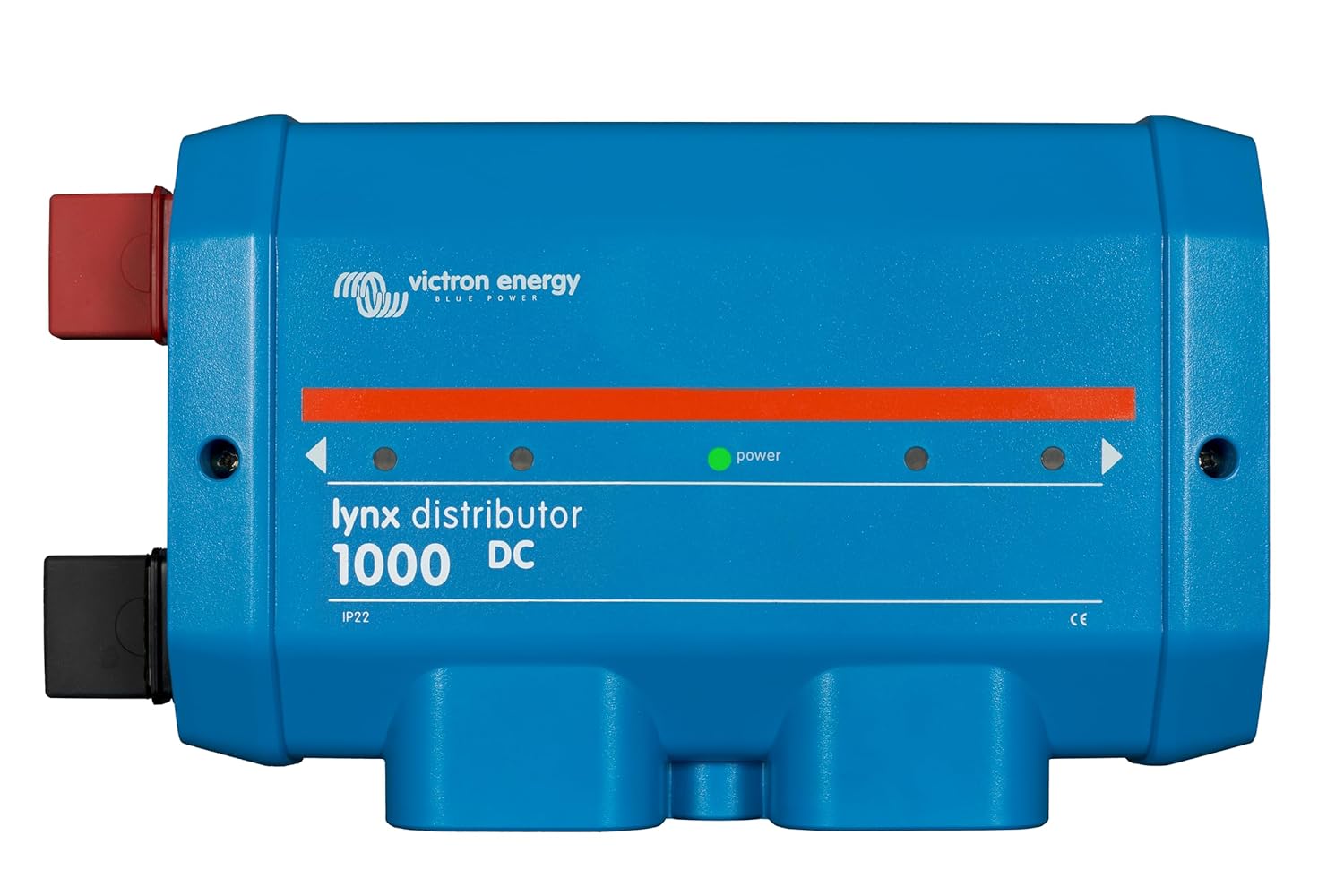

A modular DC busbar, with locations for four DC fuses. It will monitor the status of each fuse and indicate LED on the front. Part of the modular Lynx distribution system. A Lynx distribution system usually consists of a single Lynx Shunt VE.Can module or a single Lynx Smart BMS module. The choice between a Lynx Shunt VE.Can or a Lynx Smart BMS depends on what type of batteries are used in the system. The Lynx Smart BMS can only be used with the Victron Energy Lithium Smart Batteries, while the Lynx Shunt VE.Can is suitable for all other batteries. The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.The Lynx Distributor is designed to hold MEGA fuses. These need to be purchased separately.

Specifications:

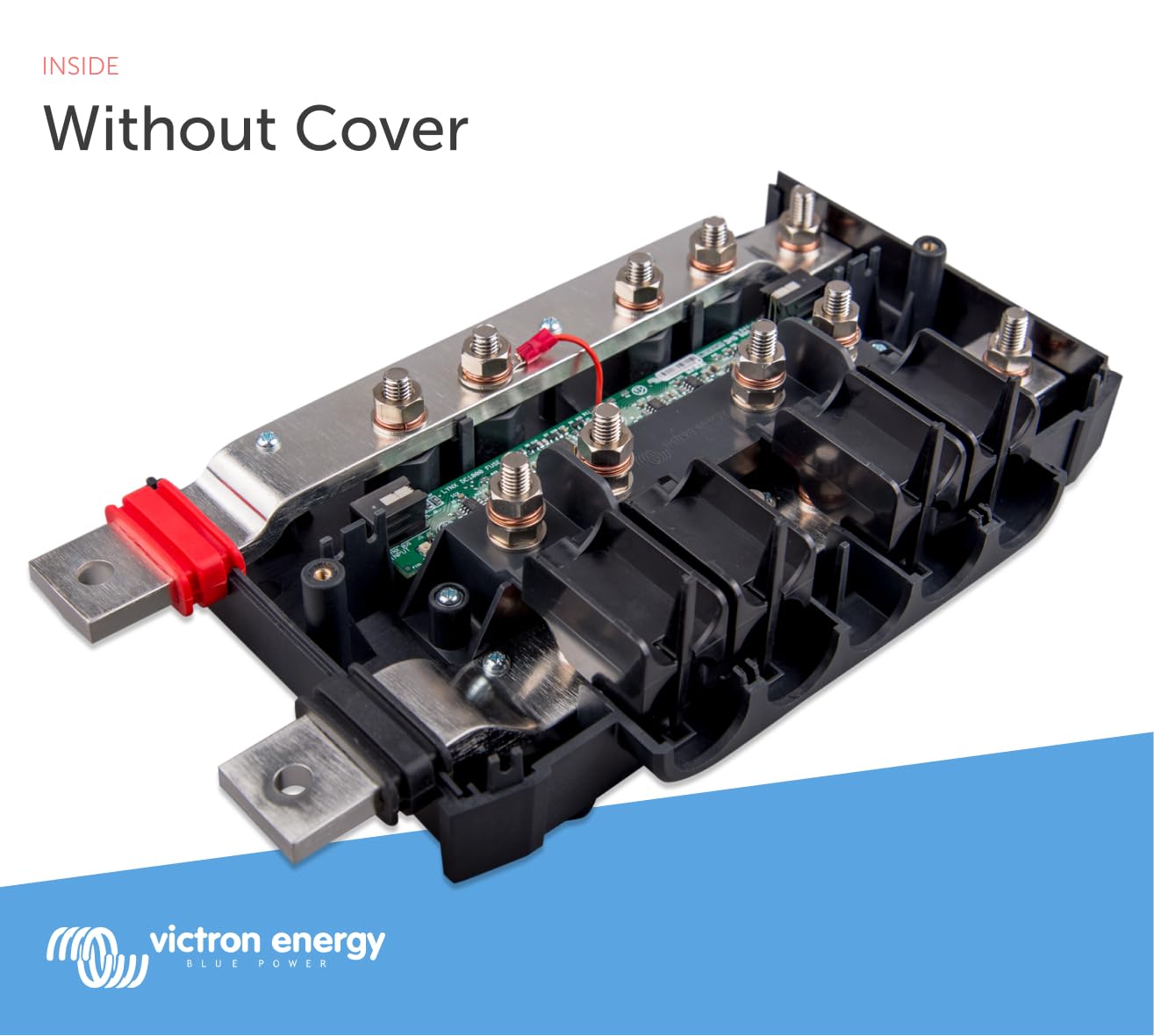

• Bus Bar Connection: The Victron Energy Lynx Distributor features positive and negative bus bars, allowing for a connection to up to four individual DC equipment circuits, loads, or DC groups
• Fuse Spaces & Indicators: The Lynx Distributor provides space for individual DC fuses in each DC group. It offers an optional LED feature for each fuse, which will indicate if a fuse is blown
• Fuse Monitoring: The Lynx Distributor constantly monitors the status of each fuse; the integrated LED on the front panel clearly indicates the fuse's status
• LED Fuse Indication: If you wish to use the fuse indication LEDs on the Victron Energy Lynx Distributor, it also requires a connection to a Victron Energy Lynx Shunt
• Incorrect installation can be hazardous. Please consult a licensed professional and follow all applicable electrical codes during installation

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Model Number: LYN060102000
Department: Unisex-Adult
Material: Plastic
Item Weight: 2.53 Pounds
Item Height: 11.42 inches

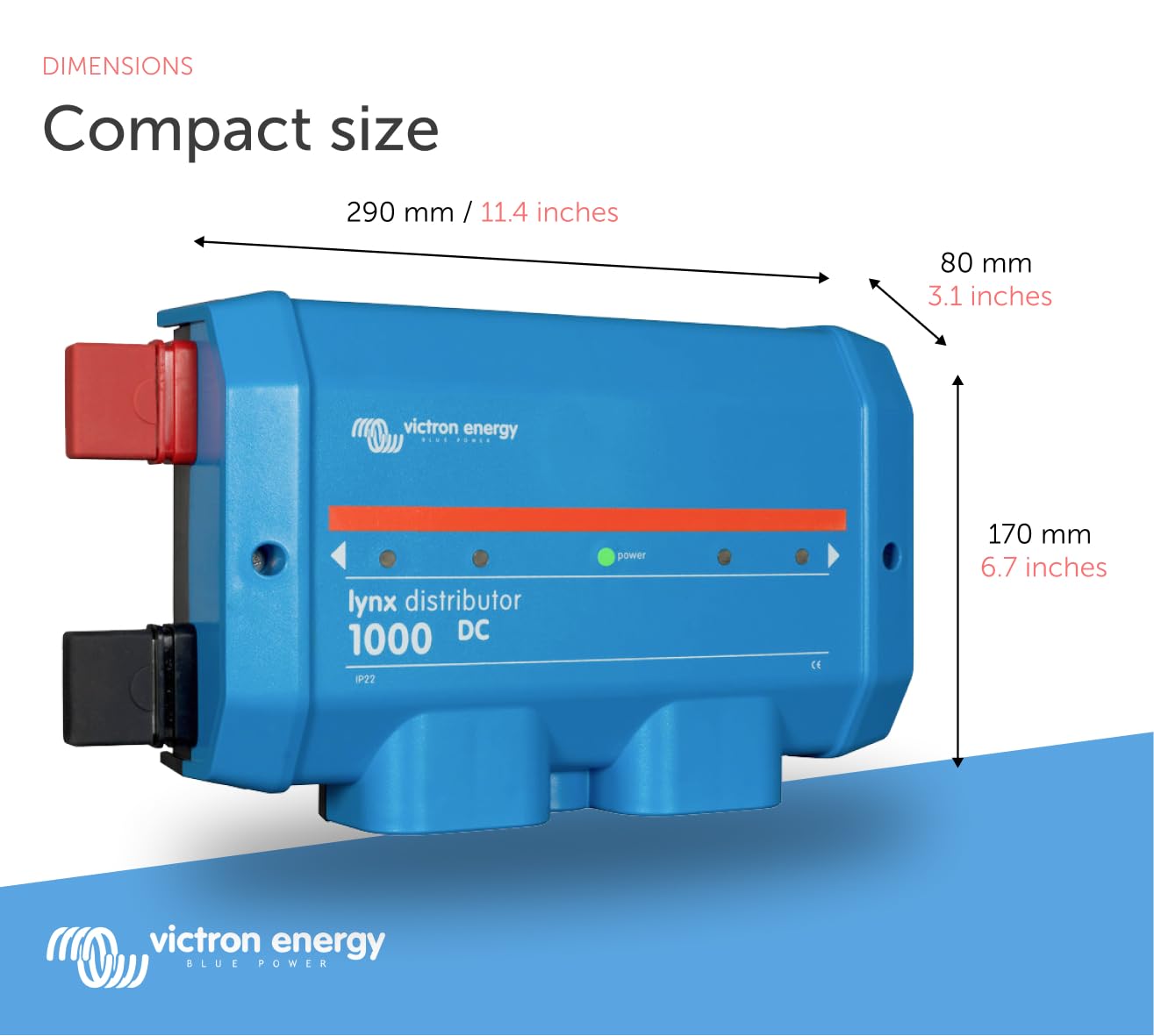

Item Dimensions D x W x H: 3.15 x 6.69 x 11.42 inches
