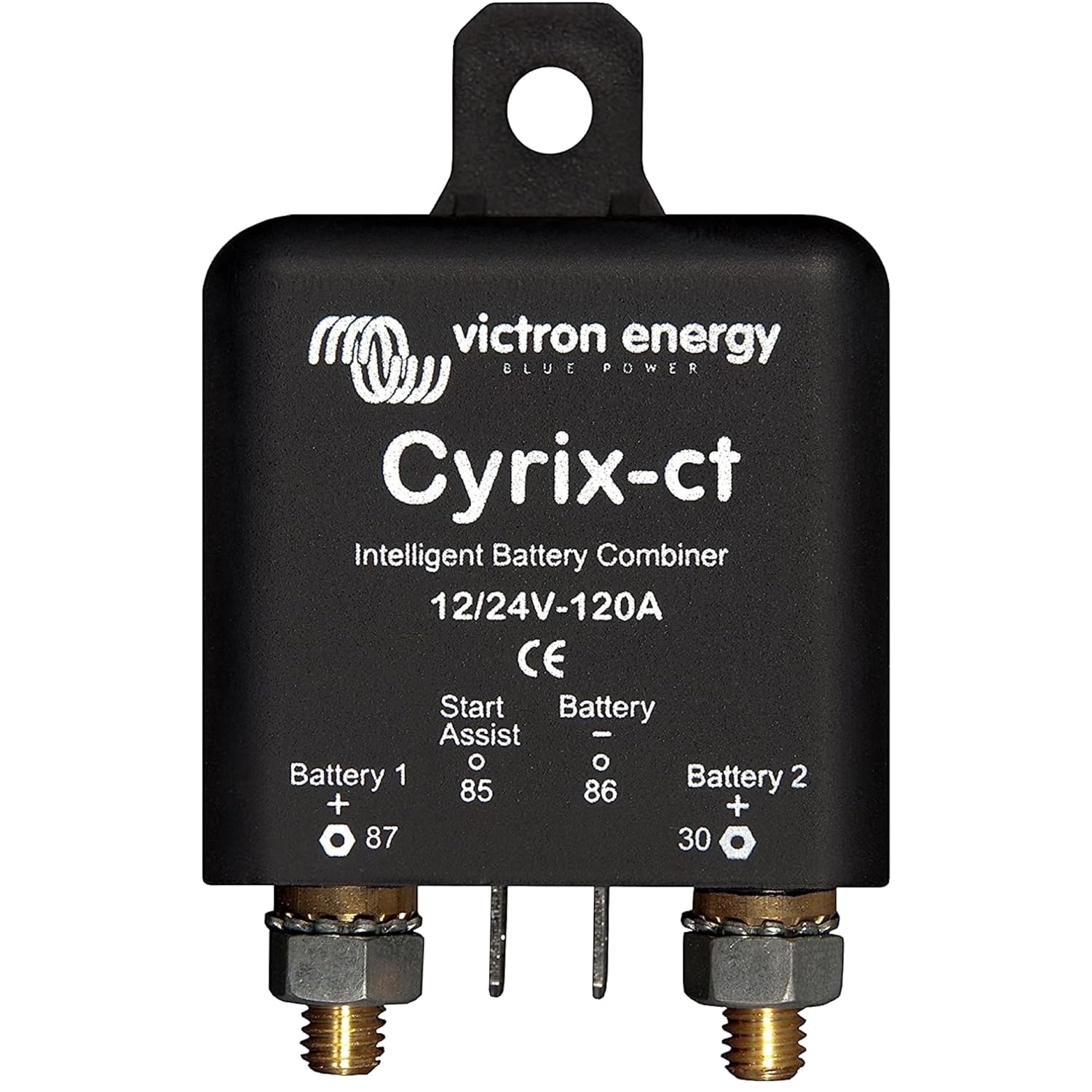

Victron Energy NT-1231 Cyrix-ct Automatic Battery Combiner, 12/24-Volt, 120 Amps (Used, No Retail Box)
Victron Energy NT-1231 Cyrix-ct Automatic Battery Combiner, 12/24-Volt, 120 Amps (Used, No Retail Box)
Couldn't load pickup availability
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased. 12/24 Volt auto ranging.
Specifications:
- Intelligent battery monitoring to prevent unwanted switching: Victron Energy Cyrix-ct 12/24-Volt 120 amp looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend
- Protection against overheating (due to a long duration overload): Victron Energy Cyrix will disengage in case of excessive contact temperature, and reengage again after it has cooled down
- Parallel connection in case of emergency (Start Assist): Victron Energy Cyrix can also be engaged with a push button (Victron Energy Cyrix remains engaged during 30 seconds) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged
- No voltage loss: Victron Energy Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased
Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
UPC: 616913923864, 619639706902
Part Number: NT-1231
Model Number: NT-1231
Connector Type: Plug-In
Contact Type: Normally Open
Current Rating: 120 Amps
Coil Voltage: 24 Volts
Contact Current Rating: 120 Amps
Maximum Switching Voltage: 24 Volts
Minimum Switching Voltage: 12 Volts (DC)
Number Of Terminals: 3
Contact Material: Metal Used In Heavy Duty Relays
Mounting Type: Wall Mount
Operation Mode: Automatic
Included Components: Victron Cyrix-CT 12/24V-120A Intelligent Battery Combiner Retail
Item Type Name: Victron Cyrix-CT 12/24V-120A Intelligent Battery Combiner Retail
Item Weight: 110 Grams
