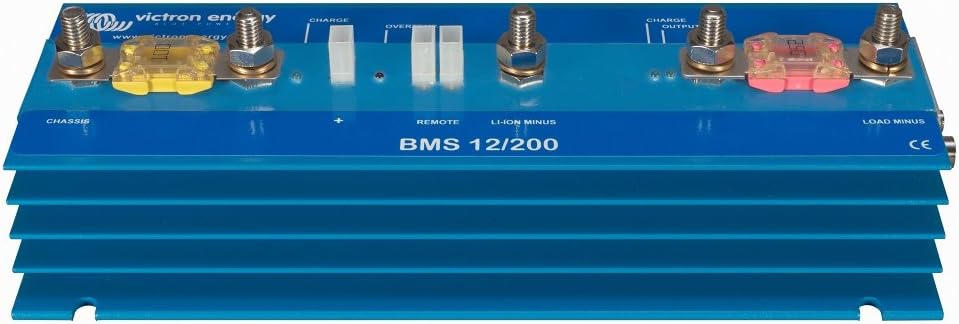

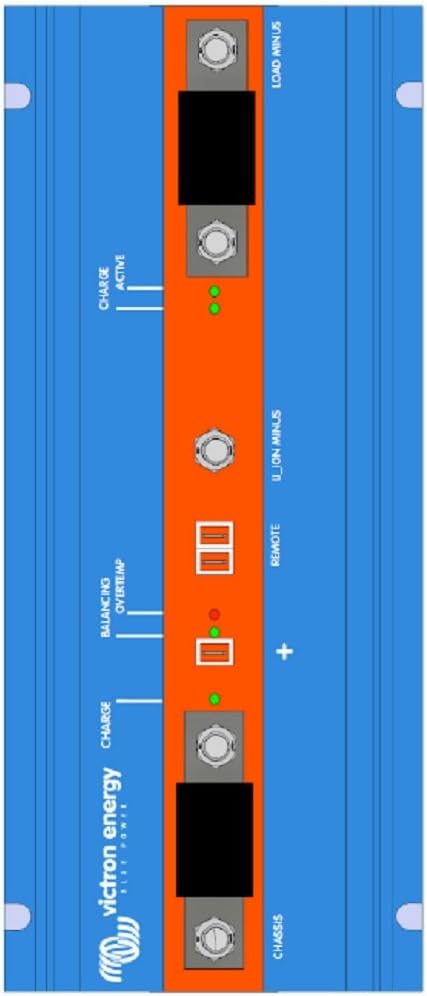

Victron Energy Smart BMS 12-Volt 200 Amp Battery Management System (Used)

The Victron Energy BMS012201000 Smart BMS 12V 200A is a robust all-in-one battery management system designed for the Victron Lithium Battery Smart 12.8V. It integrates a Current Limiter, Battery Combiner, and Battery Protector into a compact unit, ensuring safe and efficient operation. With alternator current limiting and one-way protection, it safeguards your alternator and wiring during use. Bluetooth connectivity allows monitoring and configuration through the VictronConnect app, with instant readout for real-time diagnostics. Delivering reliable 12V/200A performance, this Smart BMS is ideal for automotive, marine, and off-grid power systems.

Specifications:

• Victron Energy Smart BMS 12- Volt 200 Amp is an all-in-one battery management (BMS) system for Victron Energy Lithium Battery Smart 12,8 V

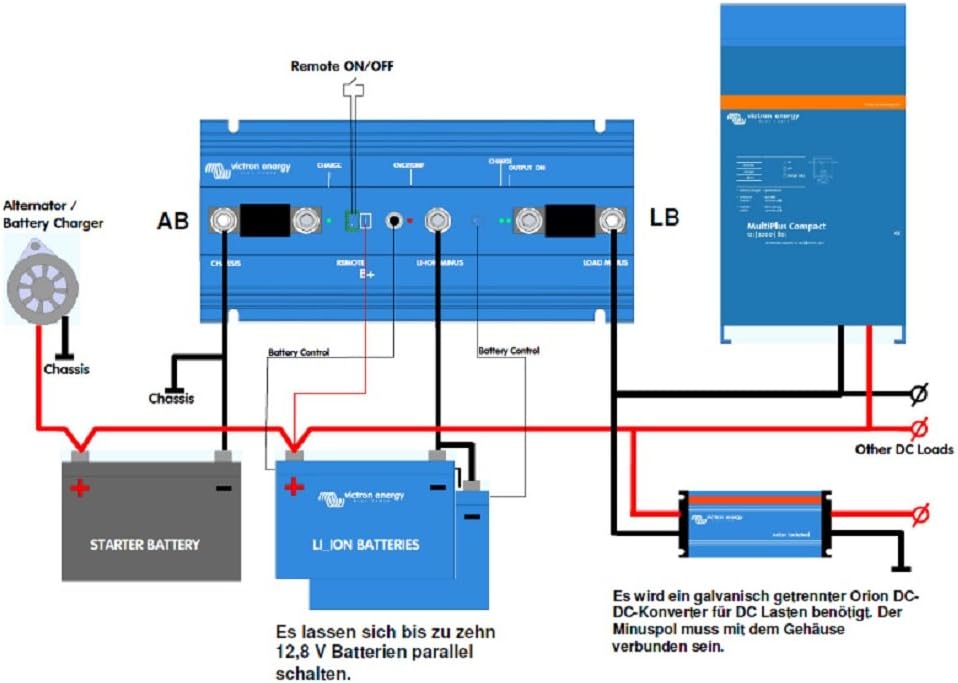

• It combines a Current Limiter, Battery Combiner and Battery Protector in a robust and compact solution and lets you safely connect any size 12-V alternator and starter battery
• Protects the alternator and wiring, provides alternator current limiting and one-way traffic from the alternator into the battery
  Use Bluetooth for monitoring and configuration via the VictronConnect app and with Instant Readout
• Victron Energy Smart BMS provides the possibility to read out the most important values in real time without the need to connect to the BMS, which enables diagnostics at a glance

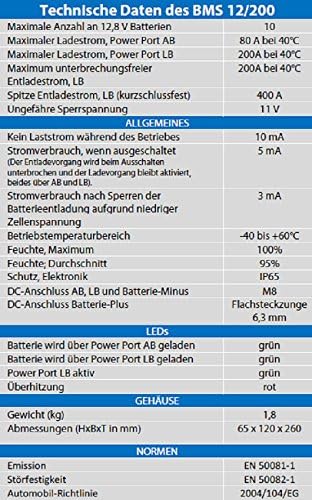

Technical Details:
Brand: Victron Energy
Manufacturer: Victron Energy
Mfr Part Number: BMS012201000
Colour: Blue
Item Height: 7 centimetres
Unit Count: 1.0 Count
Item Weight: 4.4 Pounds
Output Voltage: 12 Volts (DC)
Input Voltage: 12 Volts
Current Rating: 200 Amps
